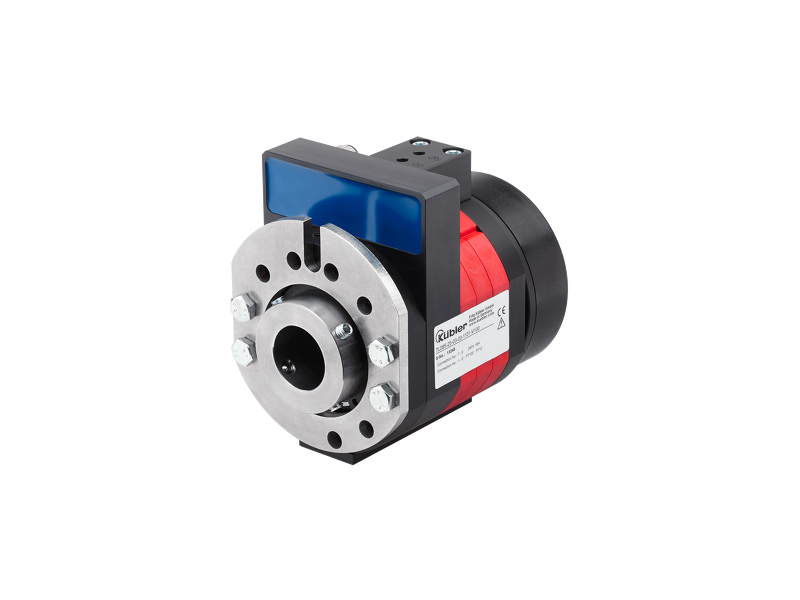

Kuebler Klizni prsten sa beskontaktnom transmisijom SRI085 ; SRI085-XX-01-XX-X1XX-V100
SRI085 Contactless transmission Maintenance-free Long service life Contactless signal transmission – maintenance-free slip ring. Slip rings are generally used...
Цена по барање
SRI085
- Contactless transmission
- Maintenance-free
- Long service life
Contactless signal transmission – maintenance-free slip ring.
Slip rings are generally used to transmit electrical currents, signals or data, pneumatics, and hydraulics from a stationary to a rotating platform. Signal transmission in the SRI085 takes place via a non-contact inductive coupling. This makes the data channels maintenance-free. The design is modular and offers maximum flexibility in a wide range of applications.| Mechanical | |
|---|---|
| Dimension | 85 mm |
| Mounting type |
25 mm Hollow shaft, through 30 mm Hollow shaft, through |
| Working temperature | -30 °C ... +85 °C |
| Protection level |
IP50 IP64 |
| Rotational speed | 800 min-1 |
| Service life | 500 million revolutions |
| Maintenance cycles | 150 million revolutions |
| Electrical | |
|---|---|
| Max. number of signal channels | 3 |
| Max. number of load channels | 6 |
| Load current transmission |
16 A, 240 V AC 25 A, 240 V AC/DC |
