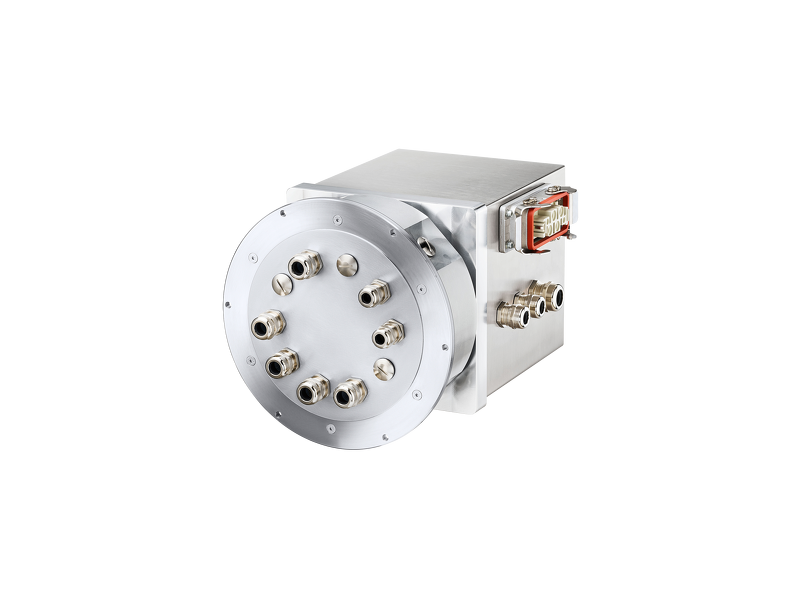

Kuebler Klizni prsten SR250H za aplikacije sa velikom strujom ; SR250H
Slip ring SR250H For high current applications Adaptable Long service life Powerful – slip ring for 80 A or even more... The SR250H slip ring transmits loads...
Цена по барање
Slip ring
SR250H
- For high current applications
- Adaptable
- Long service life
Powerful – slip ring for 80 A or even more...
The SR250H slip ring transmits loads up to 80 A, signals and data for powerful drives in parallel. Its robust modular design and various connection options ensure flexible and reliable applications. Thanks to its innovative contact technology, this slip ring is particularly low-maintenance and durable. Custom solutions are also no problem with the SR250H slip ring – get in touch!| Mechanical | |
|---|---|
| Dimension | 250 mm |
| Mounting type | Flange |
| Connection types |
Cable Connectors |
| Media lead-through | Pneumatics |
| Working temperature | -35 °C ... +85 °C |
| Protection level | IP67 |
| Rotational speed | 150 min-1 |
| Service life | 500 million revolutions |
| Maintenance cycles | 100 million revolutions |
| Electrical | |
|---|---|
| Load current transmission | 80 A, 500 V AC/DC |
| Transmission |
Fieldbus Industrial Ethernet |
