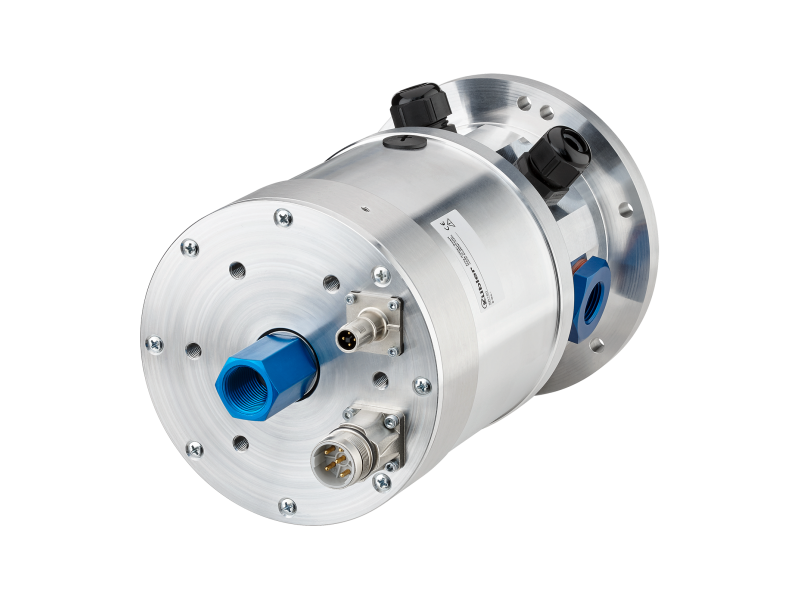

Kuebler Prilagođeni klizni prsten za sve vrste transmisije SR160 ; SR160-XX-XX-XX-XX-X1X2-V100

Slip ring SR160 Reliable transmission of field bus and Ethernet Adaptable Long service life The all-rounder – slip ring solution tailored to your application....

Бренд: Kuebler
Код: SR160-XX-XX-XX-XX-X1X2-V100
Достапност: Проверете ја достапноста

Цена по барање

Опис
Спецификација

Slip ring

SR160

Reliable transmission of field bus and Ethernet
Adaptable
Long service life

The all-rounder – slip ring solution tailored to your application.

The SR160 slip ring is ideally suited for use in filling systems and labeling machines. Its robust modular construction and variety of connection options mean you get a custom product. Its innovative contact technology ensures a long, low-maintenance service life.

Mechanical
Dimension	160 mm
Mounting type	Flange
Working temperature	-35 °C ... +85 °C
Protection level	IP65
Rotational speed	150 min^-1
Service life	500 million revolutions
Maintenance cycles	100 million revolutions

Electrical
Load current transmission	16 A, 240 V AC 10 A, 400 V AC/DC 20 A, 400 V AC/DC 25 A, 240 V AC/DC
