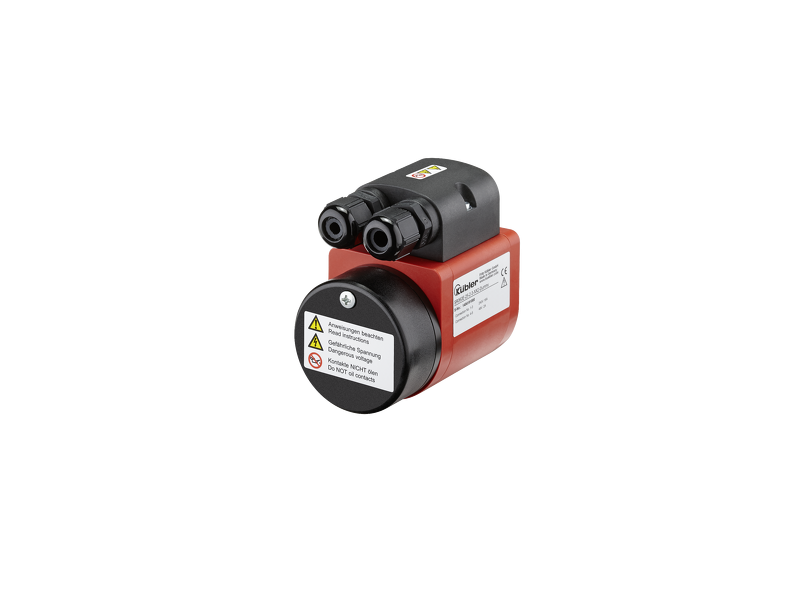

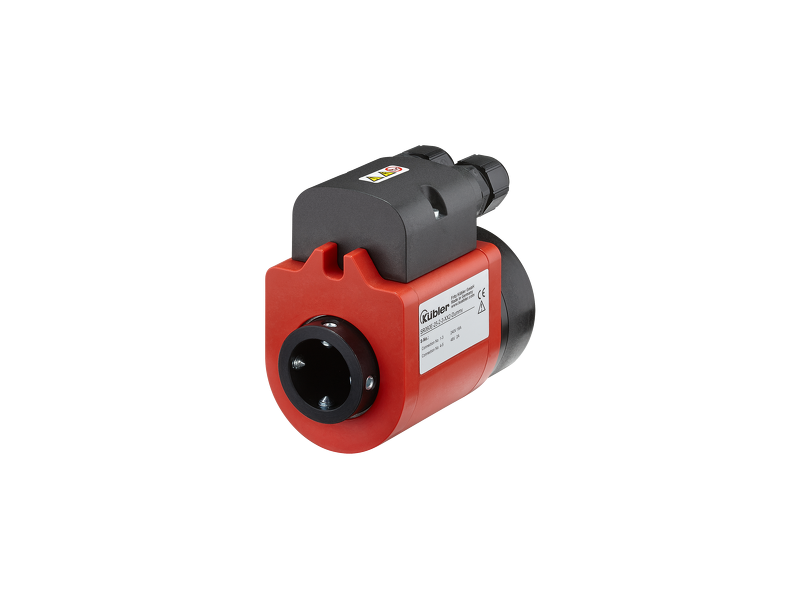

Kuebler Compact slip ring SR060E, 25mm; SR060E-25-2-2-132-V122

Kuebler Compact slip ring SR060E, 25mm; SR060E-25-2-2-132-V122 - slika 1

Kuebler Compact slip ring SR060E, 25mm; SR060E-25-2-2-132-V122

The flow pack specialist: the compact slip ring. In general slip rings are used to transmit power, signals or data from a stationary to a rotating platform. The...

Бренд: Kuebler
Код: SR060E-25-2-2-132-V122
Достапност: Проверете ја достапноста

Цена без ДДВ: 600,00 €

Цена со ДДВ: 720,00 €

Количина:

The flow pack specialist: the compact slip ring.

In general slip rings are used to transmit power, signals or data from a stationary to a rotating platform.
The SR060E is a compact, economical slip ring for up to 3 power and 2 signal transmissions.
New innovative contact materials ensure long service life and extremely low-maintenance operation. The round shape with smooth surfaces and high protection level allows easy cleaning.

Slip ring

SR060E

Heating and monitoring of sealing rollers
Compact solution
Long service life
With connector

Electrical
Max. number of signal channels	2
Max. number of load channels	3
Load current transmission	16 A, 240 V AC 20 A, 240 V AC/DC

Mechanical
Dimension	60 mm
Mounting type	20 mm Hollow shaft, through 22 mm Hollow shaft, through 24 mm Hollow shaft, through 25 mm Hollow shaft, through
Working temperature	0 °C ... +75 °C
Protection level	IP64
Rotational speed	500 min^-1
Service life	500 million revolutions
Maintenance cycles	100 million revolutions

SR060E en
