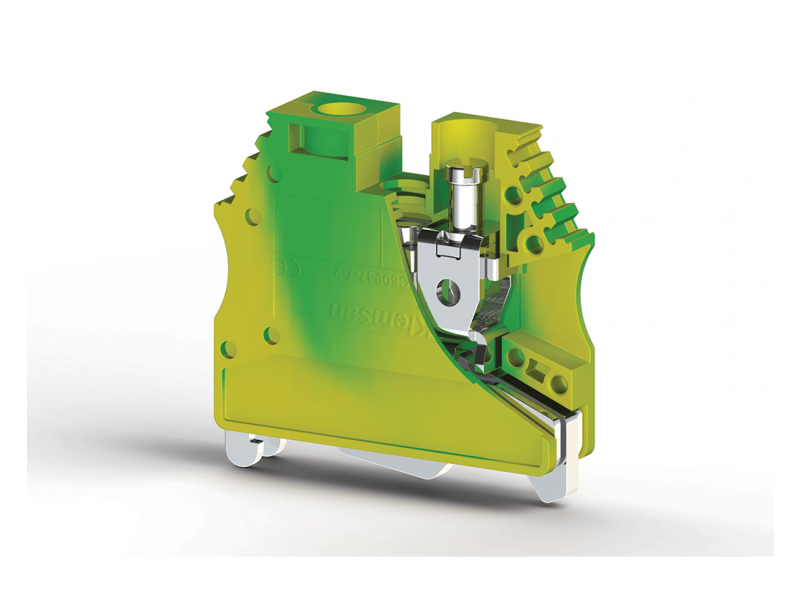

Klemsan Jednostruka redna stezaljka za provodnike uzemljenja AVK 10mm² ; 334470
10mm2,screw type,single deck,earth terminal block for AVK series,Insulation material PA,Yellow-Green...
VAT-exclusive price: 1,53 € |
VAT-inclusive price: 1,80 € |
10mm2,screw type,single deck,earth terminal block for AVK series,Insulation material PA,Yellow-Green
| General Product Information | Insulating material | PA | |
| Inflammability class acc. to UL 94 | V2 | ||
| Packing Unit | 25 | ||
| Weight (g) | --- | ||
| Dimensions | Width | 10 mm | |
| Length | 42.00 mm | ||
| Height (MR 32) | --- mm | ||
| Height (MR 35x7.5) | 44.5 mm | ||
| TSE / CE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 10 mm2 | ||
| Norm | EN 60947-7-2 | ||
| VDE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 10 mm2 | ||
| VDE Norm | IEC 60947-7-1/IEC60947-7-2 | ||
| UL / CSA Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 10 | ||
| Connection Data | Minimum solid strand cross section | 1.5 mm2 | |
| Maximum solid Strand cross section | 16 mm2 | ||
| Minimum fine Strand cross section | 1.5 mm2 | ||
| Maximum fine strand cross section | 16 mm2 | ||
| AWG Conductor Range | 16-6 | ||
| Connection Type | screw/vidalı | ||
| Insulation Stripping length | 12 mm | ||
