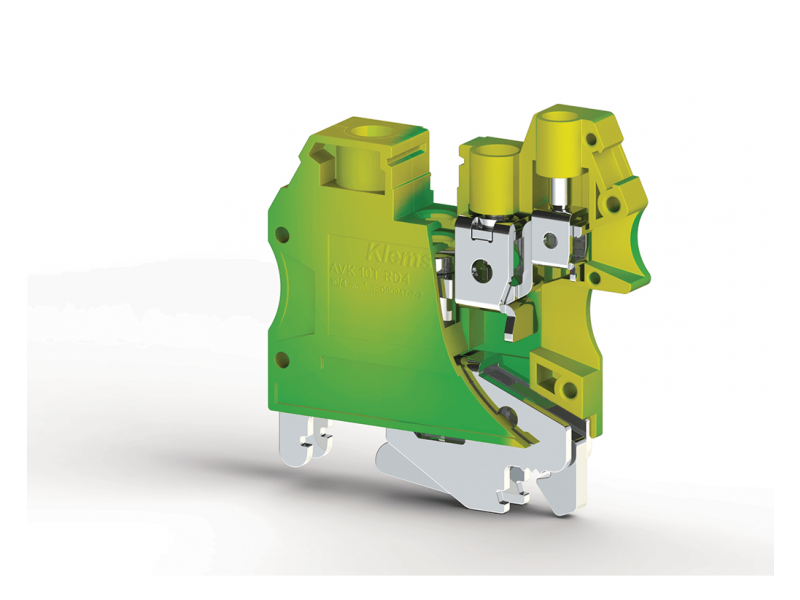

Name: Klemsan Jednostruka redna stezaljka za provodnike uzemljenja AVK 4mm²; 334450
Brand: Klemsan
SKU: 334450
Price: 1.29 RSD
Availability: OutOfStock

Klemsan Jednostruka redna stezaljka za provodnike uzemljenja AVK 4mm²; 334450

4mm2,screw type,single deck earth terminal block suitable for AVK series,Insulation material PA,Yellow-Green...

Brand: Klemsan
Product Code: 334450
Availability: Check availability

VAT-exclusive price: 1,10 €

VAT-inclusive price: 1,29 €

Qnt:

Description
Specification

4mm2,screw type,single deck earth terminal block suitable for AVK series,Insulation material PA,Yellow-Green

General Product Information	Insulating material	PA
	Inflammability class acc. to UL 94	V2
	Packing Unit	50
	Weight (g)	---
Dimensions	Width	6 mm
	Length	42.00 mm
	Height (MR 32)	--- mm
	Height (MR 35x7.5)	44.5 mm
TSE / CE Technical Data	Nominal Voltage	--- V ~
	Nominal Current	--- A
	Cross Section	2.5-4 mm2
	Norm	EN 60947-7-2
VDE Technical Data	Nominal Voltage	--- V ~
	Nominal Current	--- A
	Cross Section	2.5-4 mm2
	VDE Norm	IEC 60947-7-1/IEC60947-7-2
UL / CSA Technical Data	Nominal Voltage	--- V ~
	Nominal Current	--- A
	Cross Section	2.5-4
Connection Data	Minimum solid strand cross section	0.5 mm2
	Maximum solid Strand cross section	6 mm2
	Minimum fine Strand cross section	0.5 mm2
	Maximum fine strand cross section	6 mm2
	AWG Conductor Range	20-10
	Connection Type	screw/vidalı
	Insulation Stripping length	10 mm
