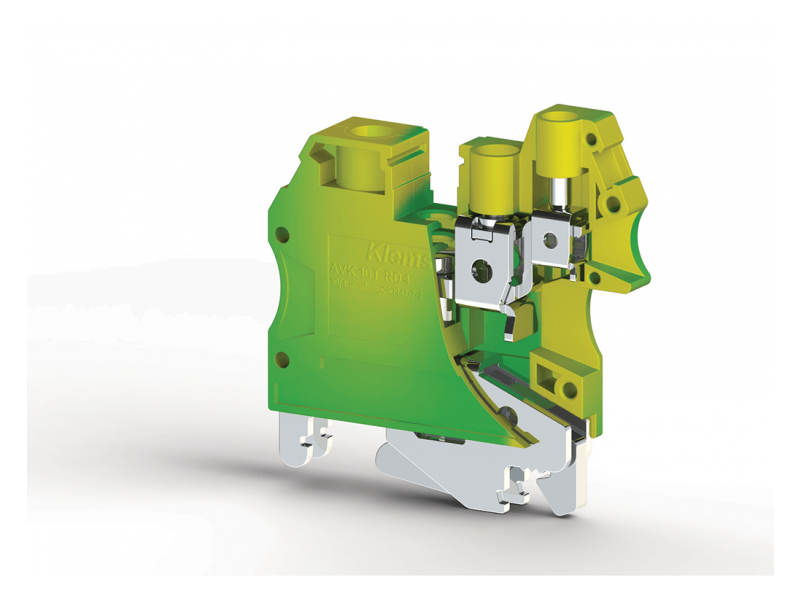

Klemsan Jednostruka redna stezaljka za provodnike uzemljenja AVK 10mm²; 334230
10mm2,screw type,single deck,1 input(10 mm2) 2 output(10 mm2 - 4 mm2) earth terminal block,Insulation material PA,Yellow-Green...
VAT-exclusive price: 4,92 € |
VAT-inclusive price: 5,81 € |
10mm2,screw type,single deck,1 input(10 mm2) 2 output(10 mm2 - 4 mm2) earth terminal block,Insulation material PA,Yellow-Green
| General Product Information | Insulating material | PA | |
| Inflammability class acc. to UL 94 | V2 | ||
| Packing Unit | 60 | ||
| Weight (g) | --- | ||
| Dimensions | Width | 10 mm | |
| Length | 49,2 mm | ||
| Height (MR 32) | --- mm | ||
| Height (MR 35x7.5) | 53 mm | ||
| TSE / CE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 4 mm2 | ||
| Norm | EN 60947-7-1 | ||
| VDE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 4 mm2 | ||
| VDE Norm | EN 60947-7-2 | ||
| UL / CSA Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 4 | ||
| ATEX Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 4 | ||
| Connection Data | Minimum solid strand cross section | 1,5 mm2 | |
| Maximum solid Strand cross section | 16 mm2 | ||
| Minimum fine Strand cross section | 1,5 mm2 | ||
| Maximum fine strand cross section | 16 mm2 | ||
| AWG Conductor Range | 16-6 | ||
| Connection Type | screw/vidalı | ||
| Insulation Stripping length | 10-7 mm | ||
| Tightening torque | 1,5 Nm | ||
