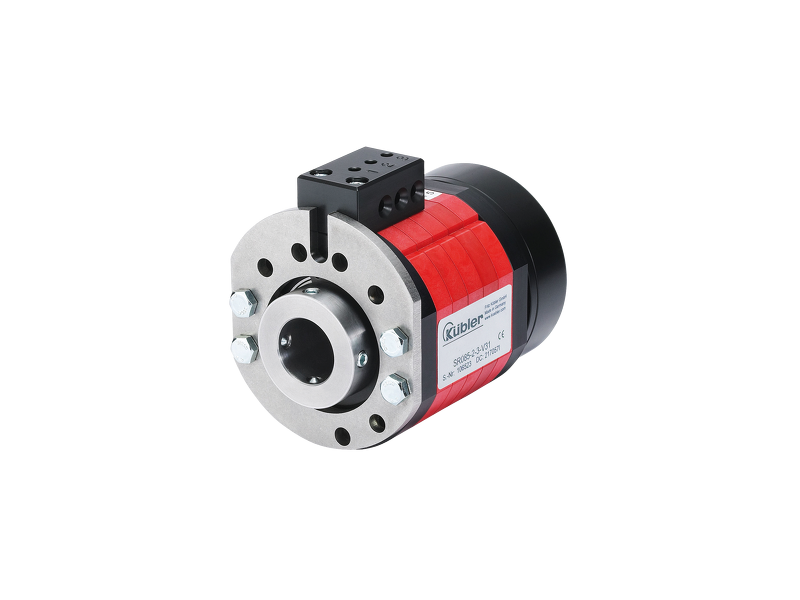

Kuebler Modularni klizni prsten serije SR085 ; SR085-XX-XX-XX-XXXXX-V100
SR085 Adaptable Media lead-through for pneumatics and hydraulics Long service life Modular and flexible – slip ring in a modular system. Slip rings are generally...
Цена по барање
SR085
- Adaptable
- Media lead-through for pneumatics and hydraulics
- Long service life
Modular and flexible – slip ring in a modular system.
Slip rings are generally used to transmit electrical currents, signals or data, pneumatics, and hydraulics from a stationary to a rotating platform. Transmission between the stator and rotor units is extremely reliable using sliding contacts. The design is modular and offers maximum flexibility in a wide range of applications.| Mechanical | |
|---|---|
| Dimension | 85 mm |
| Mounting type |
20 mm Hollow shaft, through 24 mm Hollow shaft, through 25 mm Hollow shaft, through 30 mm Hollow shaft, through |
| Working temperature | -35 °C ... +80 °C |
| Protection level | IP64 |
| Rotational speed | 800 min-1 |
| Service life | 500 million revolutions |
| Maintenance cycles | 100 million revolutions |
| Electrical | |
|---|---|
| Load current transmission |
16 A, 240 V AC 10 A, 400 V AC/DC 20 A, 400 V AC/DC 25 A, 240 V AC/DC |
