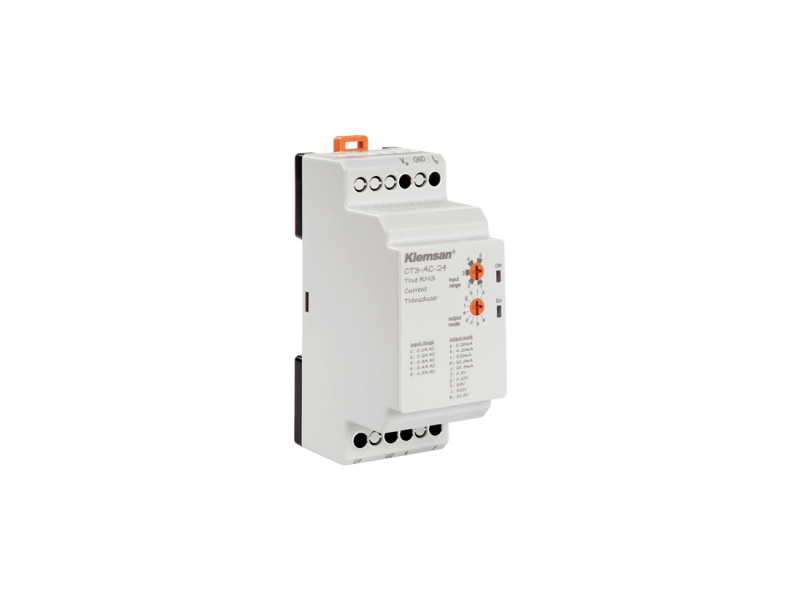

Name: Klemsan True RMS Current Transducer CT3-AC-24 ; 600102
Brand: Klemsan
SKU: 600102
Price: 139.92 RSD
Availability: OutOfStock

Klemsan True RMS Current Transducer CT3-AC-24 ; 600102

Configurable current converter CT3-AC-24. Maximum input current is 5A . 10 combinations for output signal(analog or digital, current or voltage). Supply voltage...

Brand: Klemsan
Product Code: 600102
Availability: Check availability

VAT-exclusive price: 118,57 €

VAT-inclusive price: 139,92 €

Qnt:

Configurable current converter CT3-AC-24. Maximum input current is 5A . 10 combinations for output signal(analog or digital, current or voltage). Supply voltage 10..36 V DC. Easy install and set. IP20 protection.

General
		Casing Width (mm)	36
		Connections	Screw terminal
Input Signal	Configurable Voltage Range	0-24VAC	---
		0-36VAC	---
		0-54VAC	---
		0-80VAC	---
		0-120VAC	---
		0-170VAC	---
		0-250VAC	---
		0-400VAC	---
		0-450VAC	---
		0-500VAC	---
		0-24VDC	---
		0-54VDC	---
		0-120VDC	---
		0-250VDC	---
		0-450VDC	---
	Configurable Current Range	0-1AAC	✔
		0-2AAC	✔
		0-3AAC	✔
		0-4AAC	✔
		0-5AAC	✔
Input Signal		Frequency	40-70 Hz
		Surge Overload	20xin (100 A) for 1 sec.
		Constant Overload	10A (2x Rated IN)
		Input Impedances	49.9 Ω (burden resistor)
Output	Type	0-20mA	✔
		4-20mA	✔
		±20mA	✔
		20-0mA	✔
		20-4mA	✔
		0-5V	✔
		0-10V	✔
		±5V	✔
		±10V	✔
		10-0V	✔
	Analog Output	Max. Current	24 mA
		Max. Voltage	12V
		Max. Load	10 Ω (for voltage) / 600 Ω (for current)
Supply	Voltage	AC	---
		DC	10-36V
Supply		Frequency	---
Power Consumption		DC	<1.5W
		AC	<4VA
General		Isolation	1.5 kVrms, 3-way
		Test Voltage between Input-Output	4 kV during 1 min.
		Linearity	<0.2%
		Response Time	350ms
		Ripple	<80mV
		Accuracy	<0.2% (full scale, 25°C)
		Temperature Coefficient	150 ppm/°C
Ambient Conditions		Operating Temperature	-20°C +60°C
		Storing Temperature	-40°C +75°C
		Relative Humidity (No Condensation)	Maks. 95%
General		Protection Class	IP20
		Mounting Type	Panel or Rail
EMC-EMI		Radiated Emissionas Test, 61000-6-2/AC:2012, 61000-6-4:2007/A1:2011	✔
General		Packing Unit	1
		Dimensions
		Weight (g)	81
