Name: Klemsan Non-isolated PT100 Transducer (0-100) ; 603861
Brand: Klemsan
SKU: 603861
Availability: OutOfStock

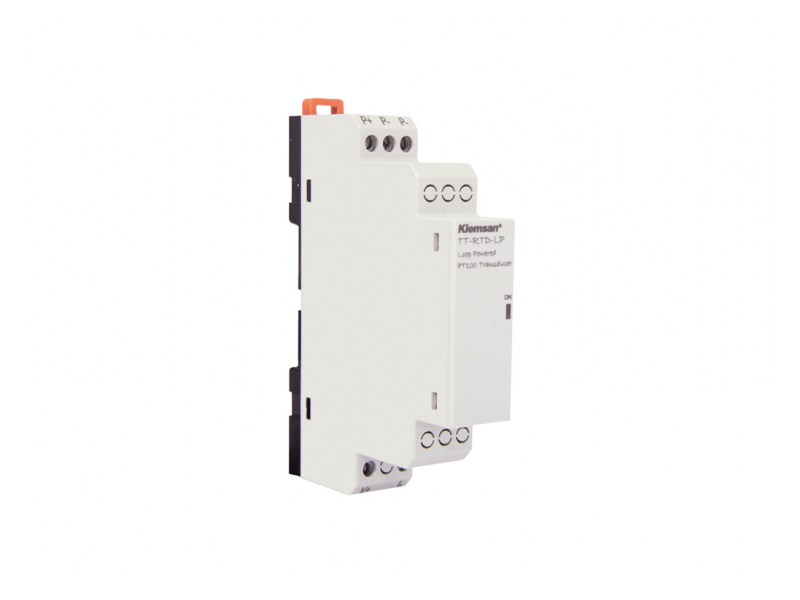

Klemsan Non-isolated PT100 Transducer (0-100) ; 603861

Non-isolated PT100 transducer TT-RTD-LP 603861. Input signal PT100 sensor ( -0C - +100C) . Output analog current signal 4..20mA. Flexible and easy mounting, width...

Brand: Klemsan
Product Code: 603861
Availability: Check availability

Price on request

Non-isolated PT100 transducer TT-RTD-LP 603861. Input signal PT100 sensor ( -0C - +100C) . Output analog current signal 4..20mA. Flexible and easy mounting, width 17.5mm. IP20

General
		Casing Width (mm)	17,5
		Connections	Screw terminal
Input		Sensor Type	PT100
		Connection Method	2 wire or 3 wire
		Temperature Measuring Range	0°C +100°C
		Sensor Excitation Current	<0.6mA
Output		Output Signal	4-20mA
		Linear Output Range	3.6mA - 23.6mA
		Max. Load	≤ 750 Ω
		Ripple	< 20 mVPP (@ 750Ω)
Supply	Voltage	AC	---
		DC	10-30V
General		Isolation	---
		Measurement Error	< 0.1% (Full Scale)
		Temperature Coefficient	≤ 0.02%/°C
		Response Time	< 20ms
		Sensor Failure Indication	3.1 mA (1 wire is broken), 24.6 mA (at least 2 wires are broken)
Ambient Conditions		Operating Temperature	-20°C +60°C
		Storing Temperature	-40°C +75°C
		Relative Humidity (No Condensation)	Maks. 95%
General		Protection Class	IP20
		Mounting Type	Panel or Rail
EMC-EMI		Radiated Emissions Test, 61000-6-2/AC:2012, 61000-6-4:2007/A1:2011	---
General		Packing Unit	1
		Dimensional Drawings	---
		Weight (g)	42
