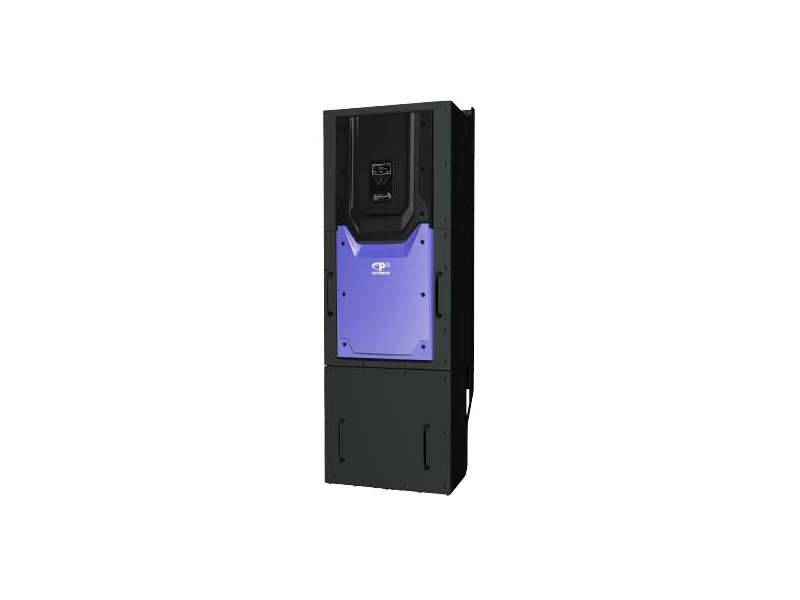

INVERTEK DRIVES Optidrive P2, 250kW ,IP55 ; ODP-2-84250-3KF4N-MN
IP55 Variable Frequency Drive with EMC Filter and TFT Display, 250 kW, 480 A, 380-480 V, 3PH; ODP-2-84250-3KF4N-MN...
VAT-exclusive price: 18.356,10 € |
VAT-inclusive price: 21.660,20 € |
IP55 Variable Frequency Drive with EMC Filter and TFT Display, 250 kW, 480 A, 380-480 V, 3PH; ODP-2-84250-3KF4N-MN
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 480 A |
| Supply Fuse or MCB (Type B) | 600 A |
Output Ratings
| Motor Output Rating | 250 kW (400 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 480 A |
Cable Information
| Max Supply Cable Size | 240 mm² (0.37 sq in) |
| Max Motor Cable Size | 240 mm² (0.37 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP55 |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
| Size | 8 |
| Height | 1334 mm (52.52 in) |
| Width | 444 mm (17.48 in) |
| Depth | 423 mm (16.65 in) |
| Weight | 144 kg (317.47 lbs) |
| Fixings | 4 x M12 |
Packaged Dimensions
| Height | 980 mm (38.58 in) |
| Width | 610 mm (24.02 in) |
| Depth | 1040 mm (40.94 in) |
| Weight | 165 kg (363.76 lbs) |
-
Invertek Drives ODP-2-84250-3KF4N-MN Datasheet
-
Optidrive P2 User Guide V3.09
