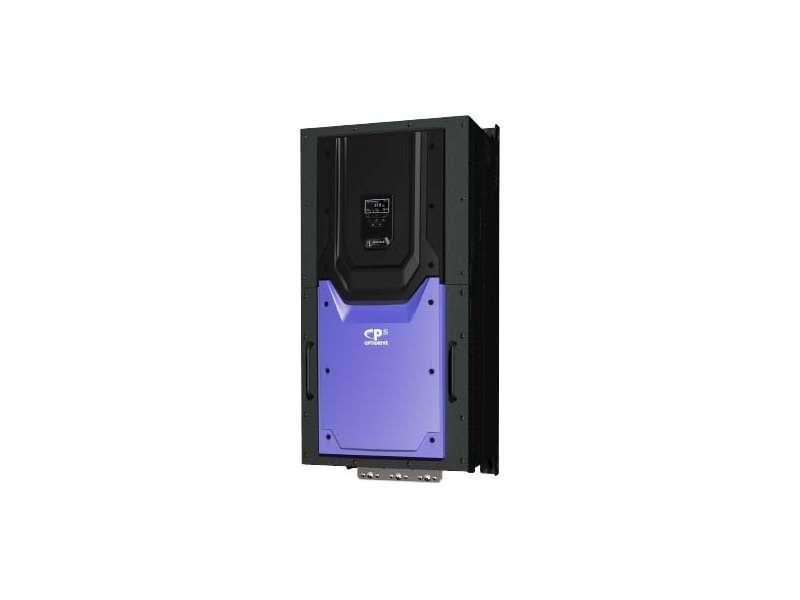

INVERTEK DRIVES Optidrive P2, 250kW, IP20 ; ODP-2-84250-3KF42-MN
Invertek Optidrive P2, , ODP-2-84250-3KF42-TN, 400V 3 phase input, 400V 3 phase output, 250kW, 450A, IP20 TFT display. High performance open loop vector or V/f control....
VAT-exclusive price: 14.175,00 € |
VAT-inclusive price: 17.010,00 € |
Invertek Optidrive P2, , ODP-2-84250-3KF42-TN, 400V 3 phase input, 400V 3 phase output, 250kW, 450A, IP20
TFT display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
TFT display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 480 A |
| Supply Fuse or MCB (Type B) | 600 A |
Output Ratings
| Motor Output Rating | 250 kW (400 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 480 A |
Cable Information
| Max Supply Cable Size | 240 mm² (0.37 sq in) |
| Max Motor Cable Size | 240 mm² (0.37 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP20 |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
| Size | 8 |
| Height | 974 mm (38.35 in) |
| Width | 444 mm (17.48 in) |
| Depth | 423 mm (16.65 in) |
| Weight | 124.5 kg (274.48 lbs) |
| Fixings | 4 x M12 |
Packaged Dimensions
| Height | 660 mm (25.98 in) |
| Width | 620 mm (24.41 in) |
| Depth | 1020 mm (40.16 in) |
| Weight | 144 kg (317.47 lbs) |
-
GB Optidrive P2 User Guide NEW
