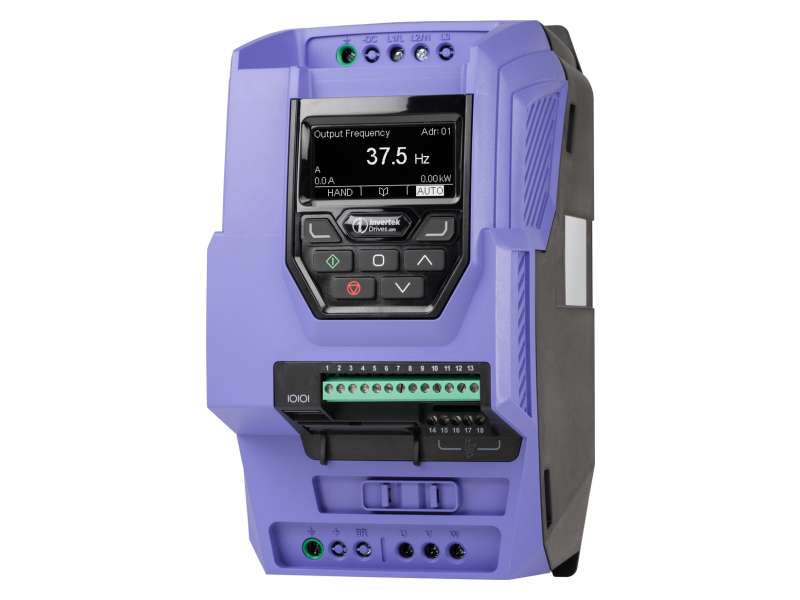

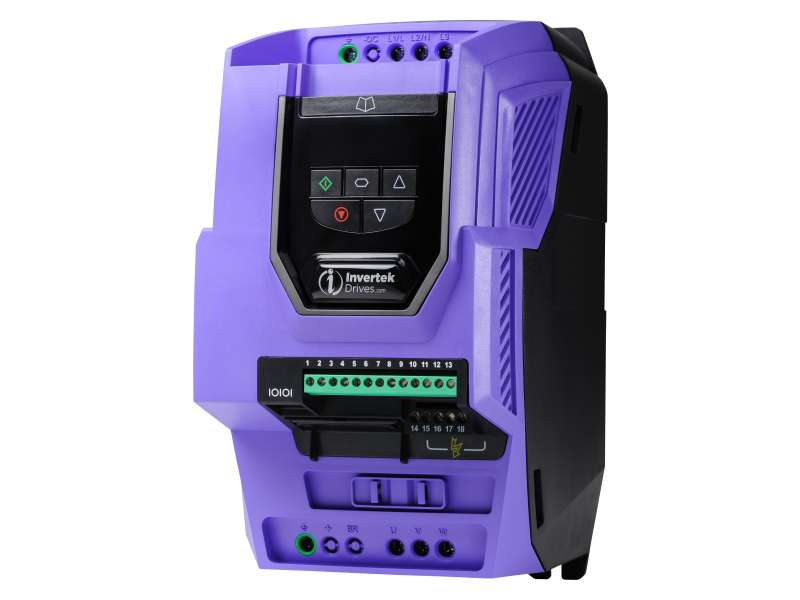

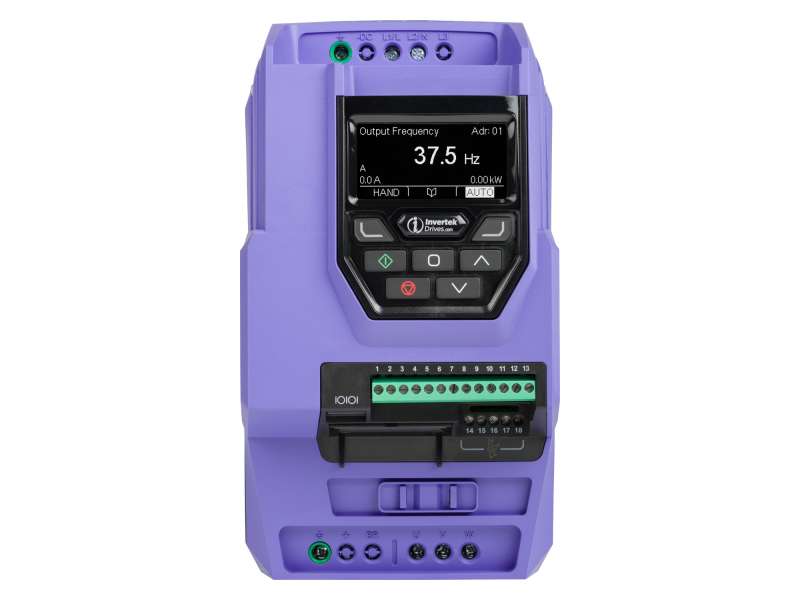

INVERTEK DRIVES Optidrive Eco, 7.5 kW, IP20 ; ODV-3-340180-3F12-MN
Invertek Optidrive Eco, ODV-3-340180-3F12-MN , 400V 3 phase input, 400V 3 phase output, 7.5kW, 18A output current IP20 inverter. DIN rail mountable Dedicated centrifugal...
VAT-exclusive price: 795,90 € |
VAT-inclusive price: 955,08 € |
Invertek Optidrive Eco, ODV-3-340180-3F12-MN, 400V 3 phase input, 400V 3 phase output, 7.5kW, 18A output current
IP20 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet
|
Power (kW) |
7.5 |
|
Power (HP) |
10 |
|
Input Voltage |
380-480V |
|
Output Voltage |
0-input Voltage |
|
Input Phases |
3 |
|
Output Current |
18A |
|
Input Current |
14A |
|
Enclosure rating |
IP20 |
|
Width |
131mm |
|
Height |
261mm |
|
Depth |
205mm |
|
Frame Size |
3 |
|
Overload |
110% |
|
Duty |
Normal |
|
Dynamic Braking |
No |
|
Weight |
3.5 |
|
Control Type |
ECO Vector |
|
Input Frequency |
48-62Hz |
|
Output Frequency |
0-500Hz |
|
Max Temperature |
40 ͦC |
|
Digital Inputs |
5 |
|
Digital Outputs |
2 |
|
Analogue Inputs/Ps |
2 |
|
Analogue Outputs/Ps |
2 |
|
Output relay(s) |
2 |
|
Serial Comms |
Modbus, Bacnet |
|
Approvals |
UL. cUL, C- Tick, Gost R, ROHS |
-
GB Optidrive ECO User Guide
