Name: INVERTEK DRIVES Optidrive Eco, 75kW, IP20 ; ODV-3-641500-3F12-MN
Brand: INVERTEK DRIVES
SKU: ODV-3-641500-3F12-MN
Price: 4585.24 RSD
Availability: OutOfStock

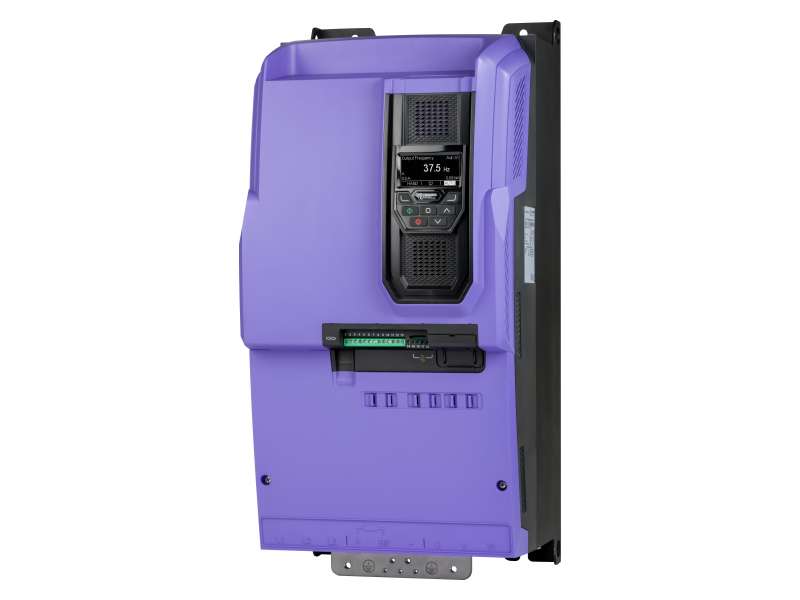

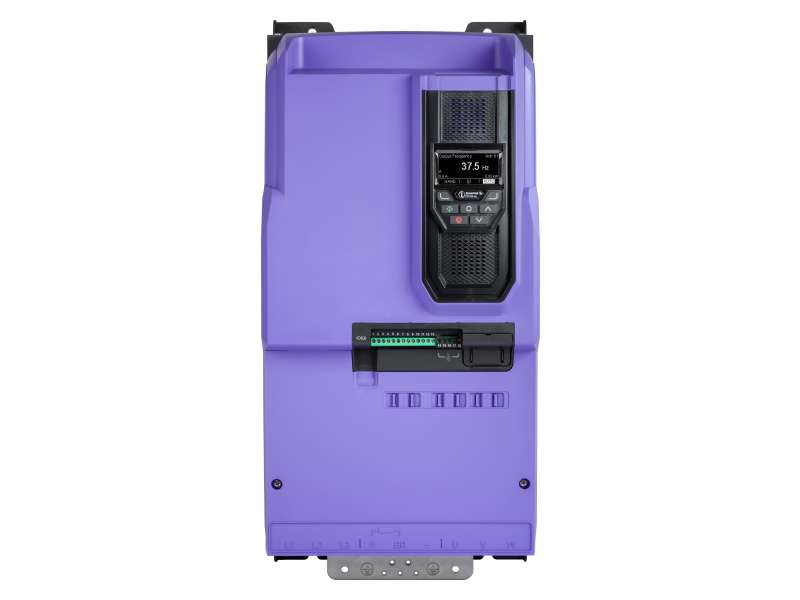

INVERTEK DRIVES Optidrive Eco, 75kW, IP20 ; ODV-3-641500-3F12-MN

INVERTEK DRIVES Optidrive Eco, 75kW, IP20 ; ODV-3-641500-3F12-MN

Invertek Optidrive Eco , ODV-3-641500-3F12-MN , 400V 3 phase input, 400V 3 phase output, 75kW, 150A output current IP20 inverter. Dedicated centrifugal Fan &...

Brand: INVERTEK DRIVES
Product Code: ODV-3-641500-3F12-MN
Availability: Check availability

VAT-exclusive price: 3.885,80 €

VAT-inclusive price: 4.585,24 €

Qnt:

Invertek Optidrive Eco ,ODV-3-641500-3F12-MN, 400V 3 phase input, 400V 3 phase output, 75kW, 150A output current
IP20 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet

Power (kW)	75
Power (HP)	100
Input Voltage	380-480V
Output Voltage	0-input Voltage
Input Phases	3
Output Current	150A
Input Current	153.2A
Enclosure rating	IP20
Width	286mm
Height	613mm
Depth	320mm
Frame Size	6A
Overload	110%
Duty	Normal
Dynamic Braking	No
Weight	32kg
Control Type	ECO Vector
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	40 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, Bacnet
Approvals	UL. cUL, C- Tick, Gost R, ROHS
