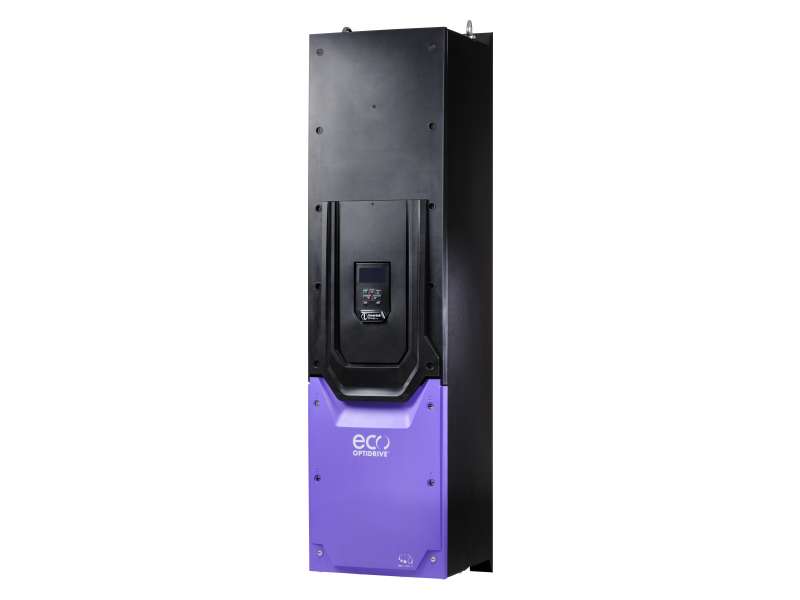

Name: INVERTEK DRIVES Optidrive Eco, 160kW ,IP55 ; ODV-3-743020-3F1N-MN
Brand: INVERTEK DRIVES
SKU: ODV-3-743020-3F1N-MN
Price: 9789.28 RSD
Availability: OutOfStock

INVERTEK DRIVES Optidrive Eco, 160kW ,IP55 ; ODV-3-743020-3F1N-MN

Invertek Optidrive Eco, ODV-3-743020-3F1N-MN , 400V 3 phase input, 400V 3 phase output, 160kW, 302A output current IP55 inverter. Dedicated centrifugal Fan &...

Brand: INVERTEK DRIVES
Product Code: ODV-3-743020-3F1N-MN
Availability: Check availability

VAT-exclusive price: 8.296,00 €

VAT-inclusive price: 9.789,28 €

Qnt:

Invertek Optidrive Eco,ODV-3-743020-3F1N-MN, 400V 3 phase input, 400V 3 phase output, 160kW, 302A output current
IP55 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet

Power (kW)	160
Power (HP)	215
Input Voltage	380-480V
Output Voltage	0-input Voltage
Input Phases	3
Output Current	302A
Input Current	307.8A
Enclosure rating	IP55
Width	330mm
Height	1280mm
Depth	360mm
Frame Size	7
Overload	110%
Duty	Normal
Dynamic Braking	No
Weight	89kg
Control Type	ECO Vector
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	40 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, Bacnet
Approvals	UL. cUL, C- Tick, Gost R, ROHS
