Name: INVERTEK DRIVES Optidrive Eco, 45kW , IP55 ; ODV-3-540900-3F1N-MN
Brand: INVERTEK DRIVES
SKU: ODV-3-540900-3F1N-MN
Price: 3601.65 RSD
Availability: OutOfStock

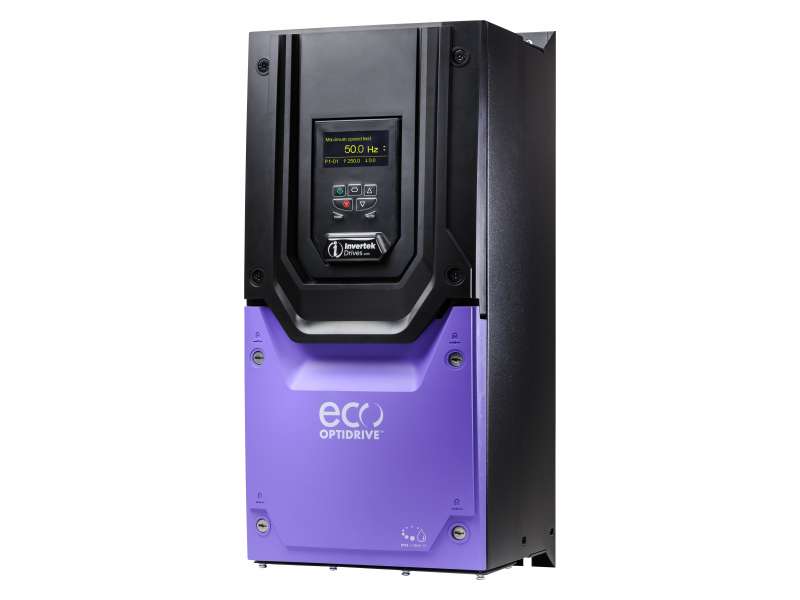

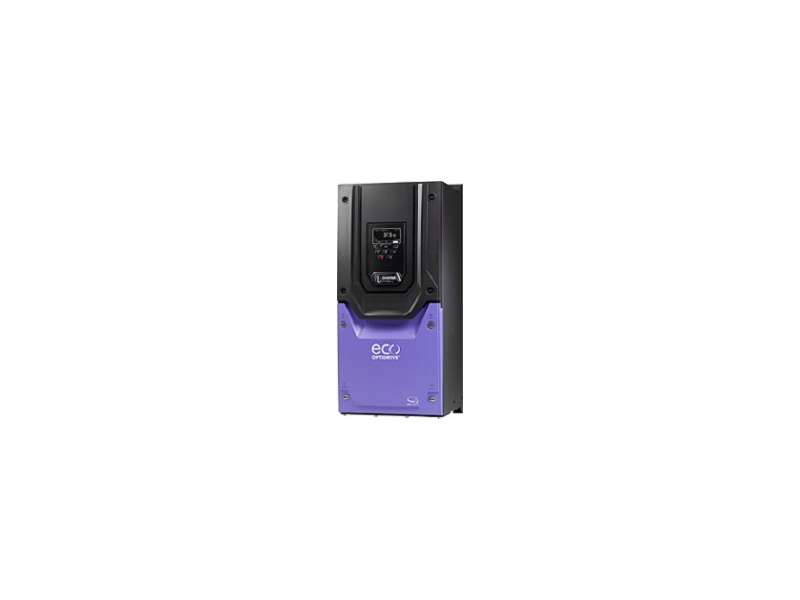

INVERTEK DRIVES Optidrive Eco, 45kW , IP55 ; ODV-3-540900-3F1N-MN

INVERTEK DRIVES Optidrive Eco, 45kW , IP55 ; ODV-3-540900-3F1N-MN

Invertek Optidrive Eco, ODV-3-540900-3F1N-MN , 400V 3 phase input, 400V 3 phase output, 45kW, 90A output current IP55 inverter. Dedicated centrifugal Fan & Pump...

Brand: INVERTEK DRIVES
Product Code: ODV-3-540900-3F1N-MN
Availability: Check availability

VAT-exclusive price: 3.052,25 €

VAT-inclusive price: 3.601,65 €

Qnt:

Invertek Optidrive Eco,ODV-3-540900-3F1N-MN, 400V 3 phase input, 400V 3 phase output, 45kW, 90A output current
IP55 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
TFT display
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet

Power (kW)	45
Power (HP)	60
Input Voltage	380-480V
Output Voltage	0-input Voltage
Input Phases	3
Output Current	90A
Input Current	75.9A
Enclosure rating	IP55
Width	235mm
Height	540mm
Depth	270mm
Frame Size	5
Overload	110%
Duty	Normal
Dynamic Braking	No
Weight	23kg
Control Type	ECO Vector
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	40 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, Bacnet
Approvals	UL. cUL, C- Tick, Gost R, ROHS
