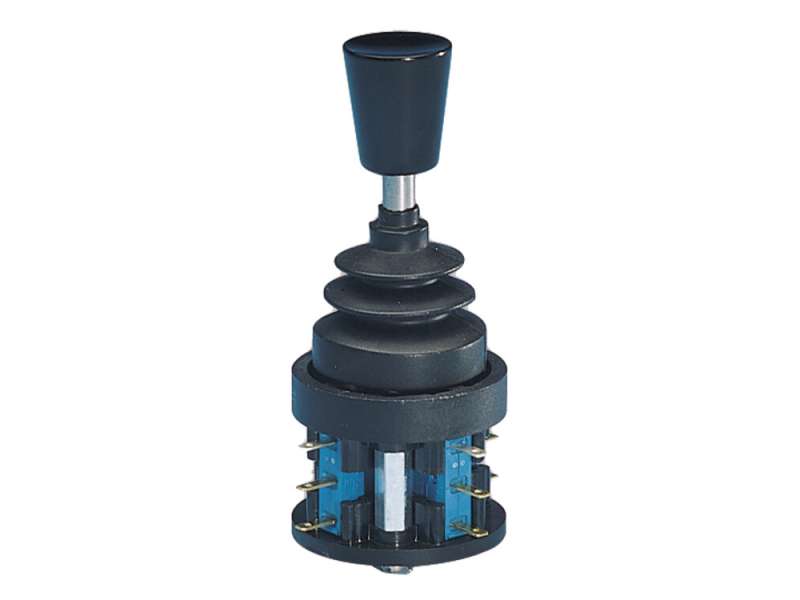

EUCHNER Series KE KES1T234 ; 029007
Front panel installation according to IEC 947-5-1 D22 1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined One changeover...
Price on request
- Front panel installation according to IEC 947-5-1 D22
- 1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined
- One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
- Center position switch
Approvals
Mechanical values and environment
| Material | |
| Switching lever stainless steel | |
| Bellows elastomer black | |
| Housing thermoplastic | |
| Weight | |
| Net | 0,1 kg |
| Ambient temperature | -25 ... 65 °C |
| Degree of protection | IP65 on the front with bellows |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy |
| Switching principle | changeover contact C IEC 947-5-1 |

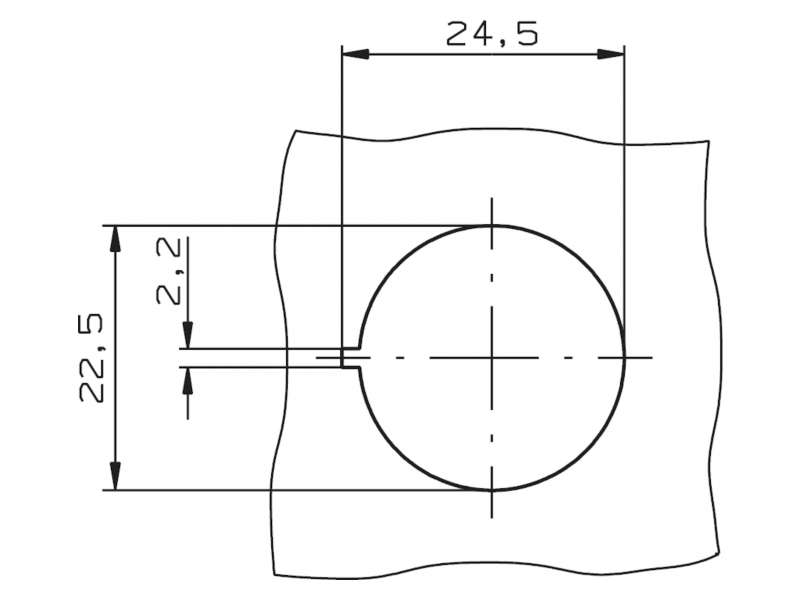

| Mounting method | IEC 947-5-1 D22 |
| Number of monitoring contacts | 4 |
| Connection | Tab connector 2.8x0.5 IEC760 |
| Actuating directions | 4 |
Electrical connection ratings
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 230V 4A |
| DC-13 | 24V 2A |
| Short circuit protection according to IEC 60269-1 | T10 / F20 |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | min.10 V |
| Switching current | |
| (at 24V) | min.12 mA |
-
Katalog Joystik Switches
