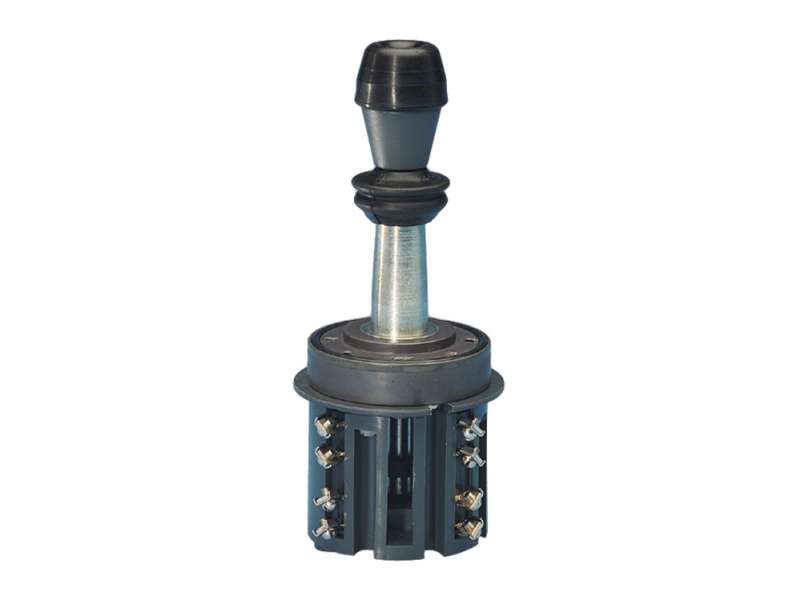

EUCHNER WES1234DFWZ Joystick switch ; 095586
Series WE... Front panel installation at rear or with front plate Switch with actuating directions 1-4 One changeover contact with screw terminal for each actuating...
Price on request
Series WE...
- Front panel installation at rear or with front plate
- Switch with actuating directions 1-4
- One changeover contact with screw terminal for each actuating direction
- Center position switch
- Pushbutton in handle
- Front panel
- Bellows
Approvals
Mechanical values and environment
| Material | |
| Housing thermoplastic/aluminum | |
| Switching lever galvanized steel | |
| Bellows elastomer black | |
| Weight | |
| Net | 0,65 kg |
| Ambient temperature | -25 ... 65 °C Latching version |
| Degree of protection | IP65 on the front with bellows |
| Contact material | Silver alloy |
| Switching principle | Changeover contact ZA IEC 947-5-1 |

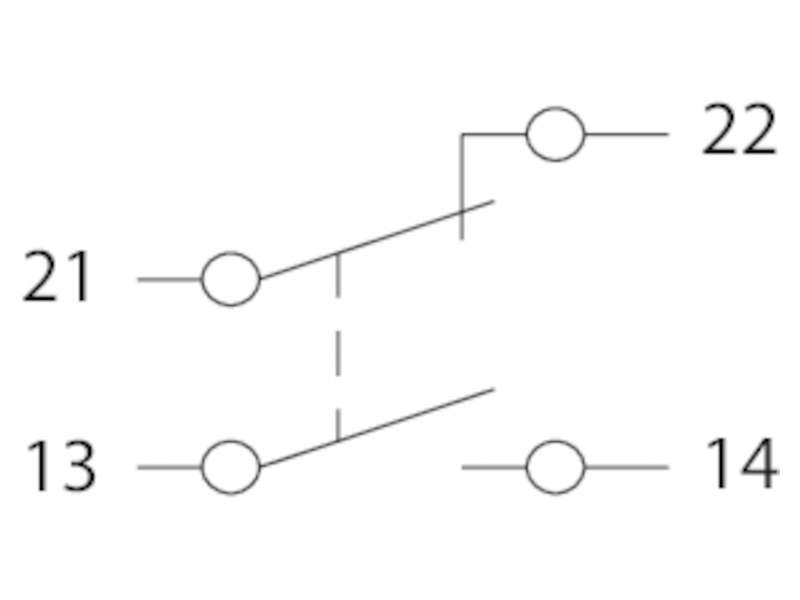

| Center-position switch | 1 changeover contact |

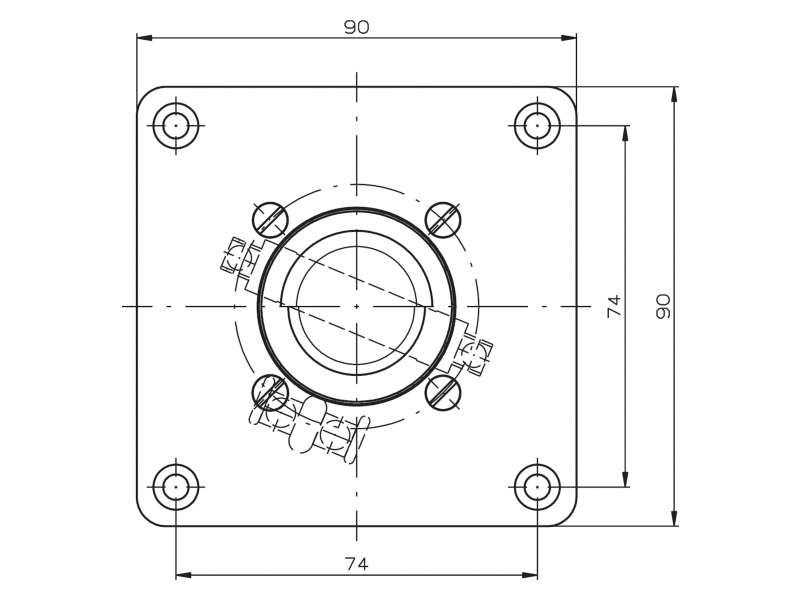

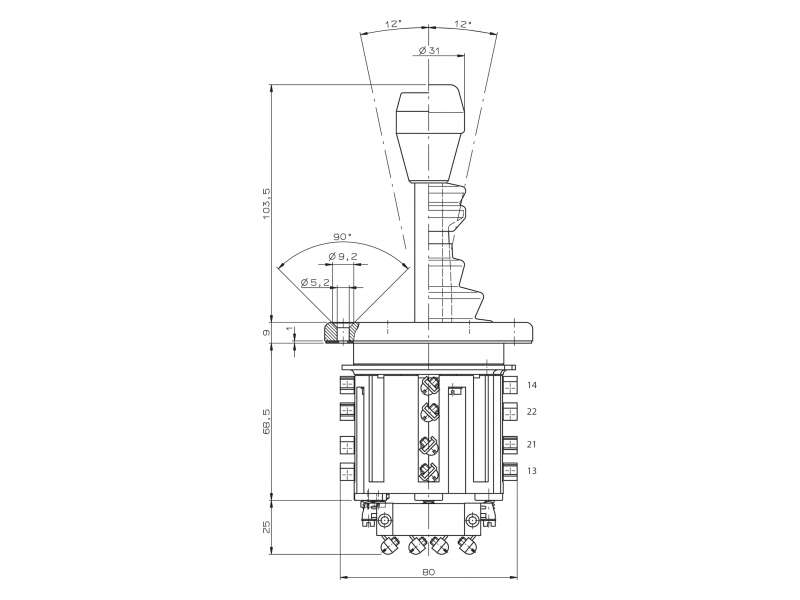

| Mounting method | 1x hole 42 and 8x 4.5 for M4 |
| Number of monitoring contacts | 4 + 1 |
| Connection | Screw terminal |
| Actuating directions | 4 |
| Pushbutton in handle | |
| Switching principle | 1 contact |
| Actuating force | max.8 N |
| Insertion depth | 3 mm |
| Mechanical life | |
| (at 0.7A / 250V AC) | 0,05 x 106 |
Electrical connection ratings
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 230V 10A |
| DC-13 | 24V 4A |
| Short circuit protection according to IEC 60269-1 | T16 / F25 |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | min.24 V |
| Switching current | |
| (at 24V) | min.50 mA |
| Pushbutton in handle | |
| Switching voltage | min.10 V |
| Switching current | |
| (at 24V) | min.12 mA |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 230V 2A |
| DC-13 | 24V 1A |
Other
| Additional feature | |
| Comment: | Pushbutton in handle |
| Front panel | |
| Bellows |
-
