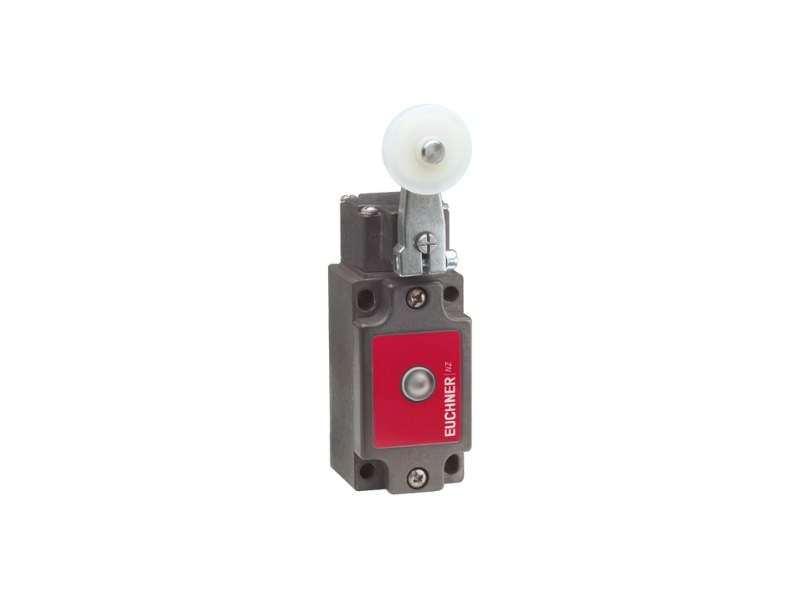

EUCHNER Safety switch NZ1HB-511L060-MC569; 091091
Safety switch NZ.HB.C569, lever arm with plastic roller Large plastic roller, ø 30 mm Cable entry M20 x 1.5 LED indicator...
Price on request
Safety switch NZ.HB.C569, lever arm with plastic roller
- Large plastic roller, ø 30 mm
- Cable entry M20 x 1.5
- LED indicator
Approvals
Electrical connection values
| Connection cross section | 0.34 ... 0.75 mm² |
| Display module | |
| AC/DC | 12 ... 60 ... 60 V LED red |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| DC-13 | 6 A 24 V |
| AC-12 | 10 A 230 V |
| AC-15 | 6 A 230 V |
| Short circuit protection according to IEC 60269-1 | 6A gG |
| Switching current | |
| min. at DC 24V | 10 mA |
| thermal rated current Ith | 6 A |
Mechanical values and environment
| Approach speed | 0.1 ... 300 m/min |
| Connection type | |
| 1 x | M20 x 1.5 |
| Number of NO contacts | 1 |
| Number of door position positively driven contacts | 1 |
| Actuating element | |
| Slide bearing plastic | Lever arm |
| Actuating force | min. 15 N |
| Installation orientation | any |
| Mechanical life | 30 x 10⁶ |
| Contact bounce time | max. 3 ms |
| Switching principle | Snap-action switching contact |
| Contact closing time | max. 4 ms |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 2x107 | 20 y |
Miscellaneous
| C number | |
| C569 |
