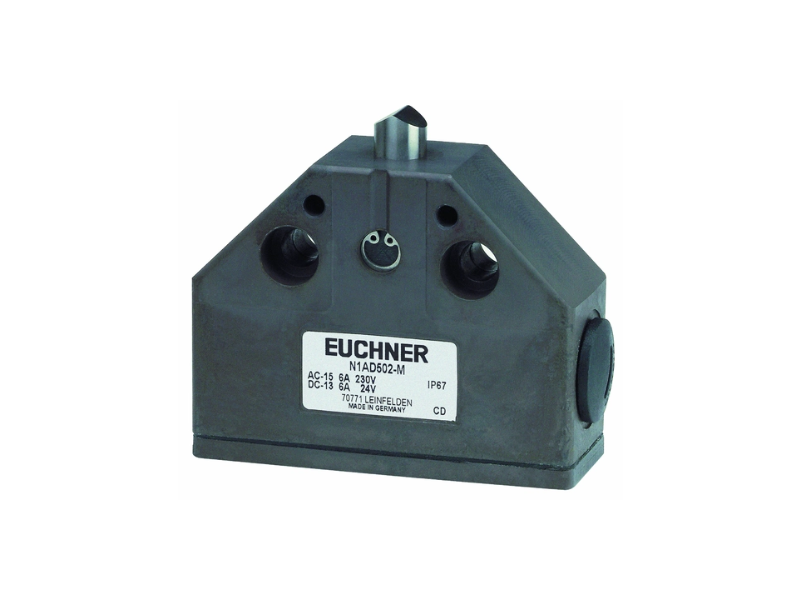

EUCHNER Precision single limit switch N1AD502SVM5-M; 087487
Precision single limit switch N1A, chisel plunger, plug connector M12 Plunger material stainless steel Housing according to DIN 43693...
Price on request
Precision single limit switch N1A, chisel plunger, plug connector M12
- Plunger material stainless steel
- Housing according to DIN 43693
Approvals
Electrical connection values
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Utilization category | |
| DC-13 | 4 A 24 V |
| AC-15 | 4 A 30 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Switching current | |
| min. at DC 12V | 10 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | 0.01 ... 40 m/min |
| Connection type | |
| 1 x | Plug connector M12 |
| Number NC contacts | 1 |
| Number of switching elements | 1 |
| Number of NO contacts | 1 |
| Design | Housing according to DIN 43693 |
| Actuating element | Chisel plunger |
| Actuating force | min. 20 N |
| Installation orientation | any |
| Mechanical life | 30 x 10⁶ |
| Contact bounce time | < 3ms |
| Switching principle | Snap-action switching contact |
| Operating point accuracy | ± 0.002 |
| Contact closing time | < 4 ms |
| Degree of protection | IP67 |
| Ambient temperature | -5 ... +80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
