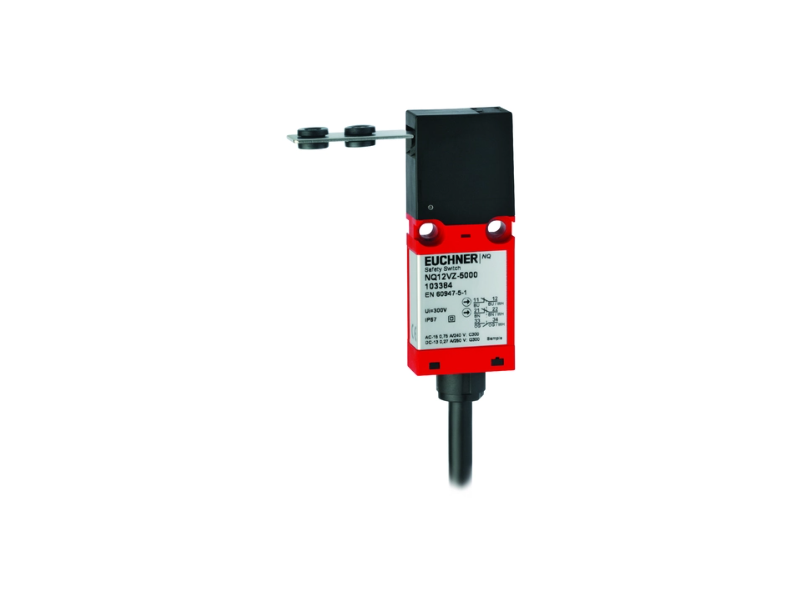

EUCHNER Safety switch NQ12VZ-5000; 103384
Safety switch NQ Compact housing Any installation orientation Connecting cable, 5 m...
Price on request
Safety switch NQ
- Compact housing
- Any installation orientation
- Connecting cable, 5 m
Approvals
Electrical connection values
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Utilization category | |
| AC-15 | 0.75 A 250 V |
| DC-13 | 0.27 A 250 V |
| Short circuit protection according to IEC 60269-1 | 2A gG |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 2.5 A |
Mechanical values and environment
| Approach speed | 0.05 ... 1 m/min |
| Connection type | Connecting cable, 5 m |
| Number of door position NO contacts | 1 |
| Number of door position positively driven contacts | 2 |
| Extraction force | 10 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 5 N |
| Installation orientation | any |
| Insertion depth | 25.3 mm |
| Mechanical life | 1 x 10⁶ |
| Retention force | 1 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Material | |
| Housing | Reinforced thermoplastic |
| Contact | Silver alloy, gold flashed |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 2x106 | 20 y |
In combination with actuator ACTUATOR-Q-WTB
| Horizontal overtravel | 2.3 mm |
In combination with actuator ACTUATOR-Q-GT, HINGED ACTUATOR-Q-RO, HINGED ACTUATOR-Q-LU, ACTUATOR-Q-WT
| Horizontal overtravel | 2.9 mm |
