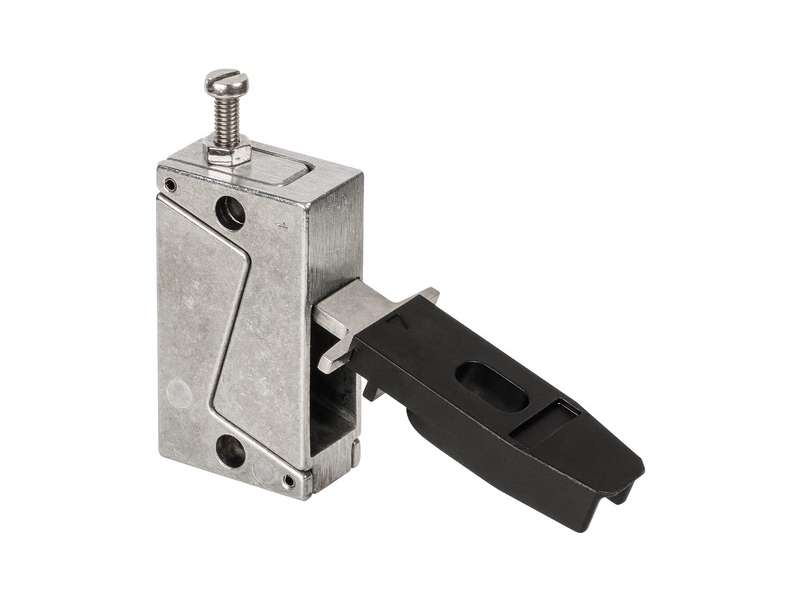

EUCHNER Hinged actuator for safety switch CTP/CTA A-C-H-RU-LS-122676 (Order no. 122676)
Hinged actuator for bottom-hinged doors Two safety screws included...
Price on request
- Hinged actuator for bottom-hinged doors
- Two safety screws included
Approvals
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Mechanical life | 1 x 10⁶ |
| Overtravel | 5 mm |
| Degree of protection | IP67/IP69 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Encapsulation | fiber reinforced plastic, black |
| Mounting range | Die-cast aluminum |
| Locking force Fmax | 2600 N |
| Locking force FZh | 2000 N |
