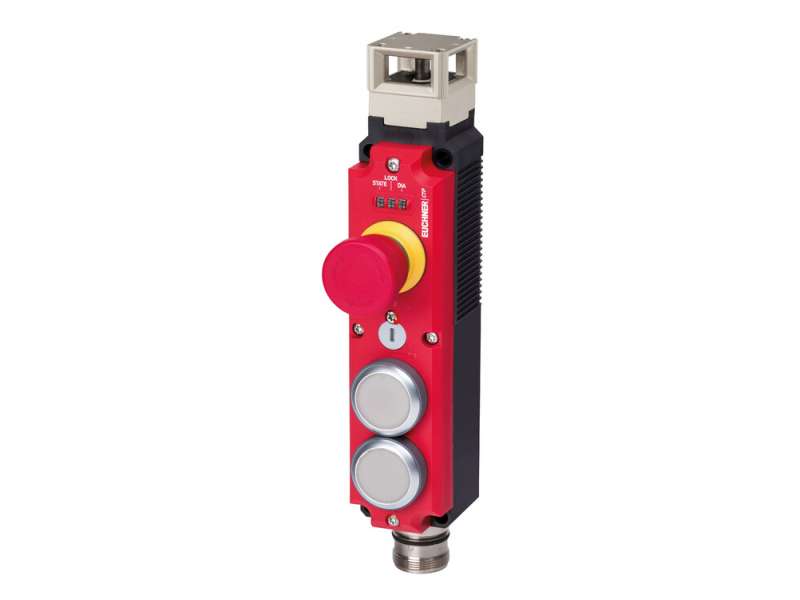

Transponder-coded safety switch CTP-AR, M23, emergency stop, 2 push buttons

Safety switch with guard locking and integrated evaluation electronics
Up to 20 switches in series
Short circuit monitoring
Two safety outputs (semiconductor outputs)
Up to category 4/PL e according to EN ISO 13849-1
Emergency stop
Two pushbuttons (illuminated)
With plug connector M23
Unicode
Door monitoring output

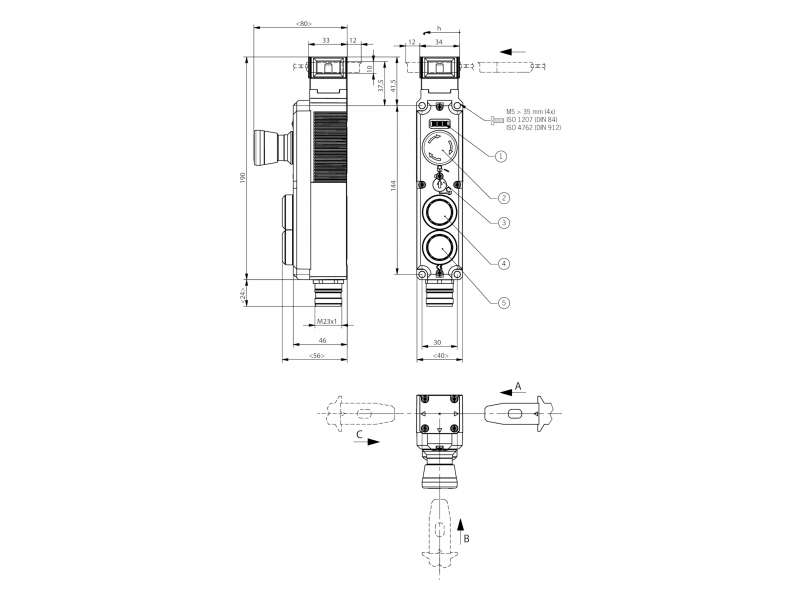

Approach directions A, B and C (delivery state)

Approvals

Zulassung c_UL_us LISTED Class 2 or LV/C

Mechanical values and environment

Housing material
Switch head cover	Die-cast zinc
Safety switch housing	Fiber glass reinforced thermoplastic
Weight
Net	0,5 kg
Ambient temperature
At U_B = 24V DC	-20 ... +55 °C
Degree of protection	IP65
Resilience to vibration	In acc. with EN IEC 60947-5-3
Mechanical life	1 x 10⁶
Installation orientation	Any
Ready delay	8 s
Switching frequency	max.0,5 Hz

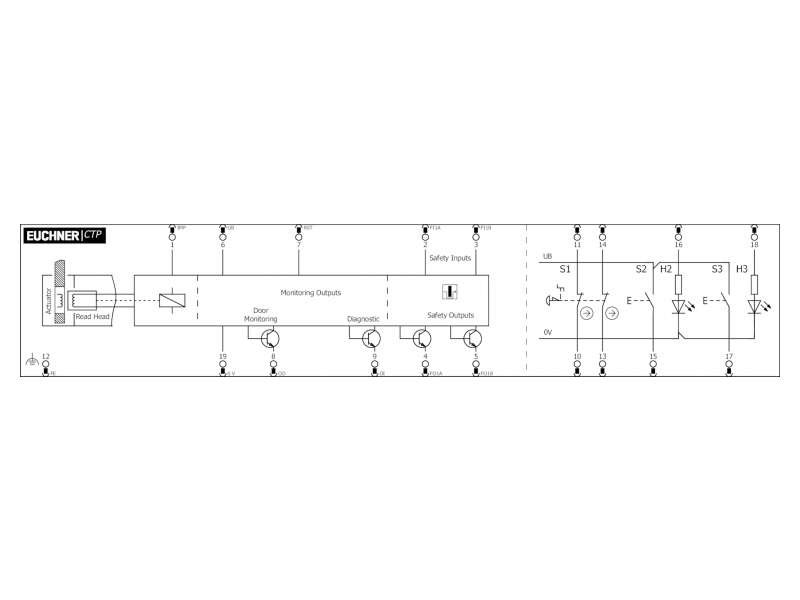

Connection	1 plug connector M23, 19-pin, RC18
Approach speed	max.20 m/min
Guard locking principle	Open-circuit current principle
Locking force F_max	3900 N
Locking force F_Zh	3000 N
Retention force	20 N
Extraction force	20 N
Actuating force	10 N
Overtravel	5 mm

Electrical connection ratings

Test-pulse interval	min.140 ms
Test pulses	max.1,0 ms
Operating voltage DC
U_UB	24 V DC -15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV
Current consumption
I_UB	40 mA
I_IMP	400 mA
Utilization category according to EN 60947-5-2
DC-13	24V 150mA
Solenoid operating voltage DC
U_IMP	24 V DC -15% ... +10% Reverse polarity protected, regulated, residual ripple < 5%, PELV
Fusing
External (operating voltage UB)	0,25 ... 2 A
External (solenoid operating voltage IMP)	0,5 ... 8 A
Rated insulation voltage U_i	max.50 V
Rated impulse withstand voltage U_imp	max.0,5 kV
Power consumption	6 W
EMC protection requirements	In acc. with EN IEC 60947-5-3
Solenoid duty cycle	100 %
Degree of contamination (external, according to EN 60947-1)	3
Safety class
EN IEC 61140	III
Risk time according to EN 60947-5-3
Delay per device	5 ms
Single device	max.260 ms
Switching load
According to UL	24V DC, class 2
	Safety outputs FO1A / FO1B
Type of output	2 semiconductor outputs, p-switching, short circuit-proof
Switching current
Per safety output FO1A / FO1B	1 ... 150 mA
Output voltage
High U(FO1A) / U(FO1B)	UB-1,5 ... UB V DC
Low U(FO1A) / U(FO1B)	0 ... 1 V DC
Off-state current I_r	max.0,25 mA
Switch-on time	max.400 ms
Discrepancy time
Both safety outputs	max.10 ms In acc. with EN IEC 60947-5-3
	Monitoring output OD
Type of output	p-switching, short circuit-proof
Switching current	1 ... 50 mA
Output voltage	0,8xUB ... UB V DC
	Monitoring output OI
Type of output	p-switching, short circuit-proof
Switching current	1 ... 50 mA
Output voltage	0,8xUB ... UB V DC
	Controls and indicators
Operating voltage	UB V
Operating current	1 ... 50 mA
Power supply
LED	24 V
Current consumption
LED	10 mA
	Emergency stop
Operating voltage	5 ... 24 V
Operating current	1 ... 100 mA

Work area

Repeat accuracy R
According to EN 60947-5-2	10 %

Controls and indicators


	Position 1
Ausführung	Emergency stop
Einlegeschild
Extras
Farbe
Schaltelement	2 pos. driven NC

	Position 2
Ausführung	Illuminated push buttons
Einlegeschild
Extras
Farbe
Schaltelement	1NO

	Position 3
Ausführung	Illuminated push buttons
Einlegeschild
Extras
Farbe
Schaltelement	1NO

Other

Additional feature	Incl. cover set ID. No. 120344
For the approval according to UL the following applies	Operation only with UL class 2 power supply, or equivalent measures see operating instructions
