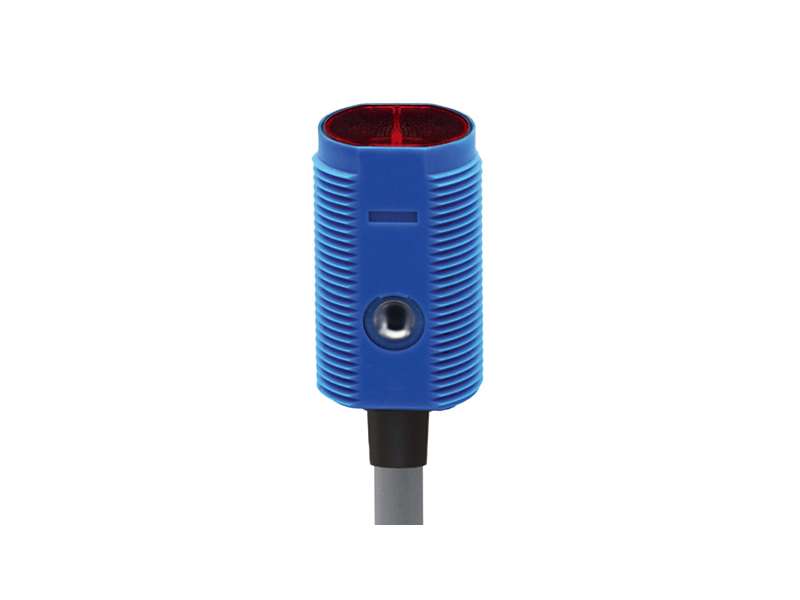

CONTRINEX Standardni fotoelektrični senzor,REFLEX,M18,PNP, LRR-M18PA-NMK-404;620-600-182
Standardni fotoelektrični senzor sa prinicipom rada kroz snop ( REFLEX). Senzor je dimenzija M18, sa kućištem u IP67 stepenu zaštite.PNP je polaritet,...
VAT-exclusive price: 57,00 € |
VAT-inclusive price: 68,40 € |
Standardni fotoelektrični senzor sa prinicipom rada kroz snop ( REFLEX). Senzor je dimenzija M18, sa kućištem u IP67 stepenu zaštite.PNP je polaritet, a povezivanje se vrši PVC ,2m ,3-wire
Short Specifications
| Operating principle | Reflex |
|---|---|
| Sensing range typ. Max. | 20...7000 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | M18 |
| Sensitivity adjustment | 2500...7000 mm, IO-Link |
| Polarity | PNP |
| Output | Dark-on/IO-Link |
| Interface | IO-Link |
| Connection | PVC, 2 m, 3 wire |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1500 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
-
LRR-M18PA-NM
