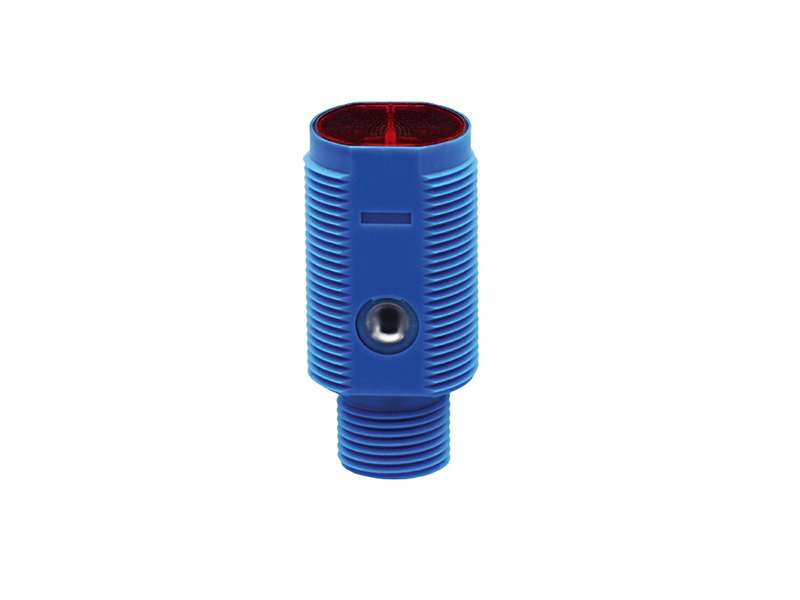

CONTRINEX Standardni fotoelektrični senzor,REFLEX,M12,NPN, LRR-M18PA-NMS-603 ;620-600-189
Standard photoelectric sensor ,reflex. HousingM18 mm in IP67 protection.PNP polarity and M12 4-pina connection....
VAT-exclusive price: 61,00 € |
VAT-inclusive price: 71,98 € |
Standard photoelectric sensor ,reflex. HousingM18 mm in IP67 protection.PNP polarity and M12 4-pina connection.
Short Specifications
| Operating principle | Reflex |
|---|---|
| Sensing range typ. Max. | 20...7000 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | M18 |
| Sensitivity adjustment | 2500...7000 mm, IO-Link |
| Polarity | PNP |
| Output | Light-on/IO-Link + Dark-on |
| Interface | IO-Link |
| Connection | M12 4-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1500 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
-
LRR-M18PA-NM
