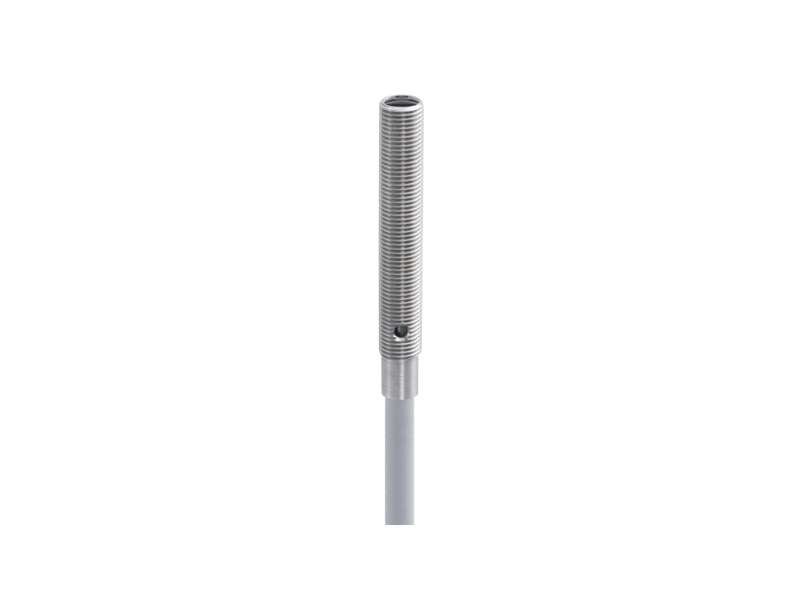

CONTRINEX Standardni fotoelektrični senzor, DIFFUSE,M5,NPN, Φ4,LTI-D04MA-NMK-301;620-600-437
Standard photoelectric sensor diffuse. Ho using Φ4 mm in IP67 protection polarity NPN PUR,2m,3wire connection....
VAT-exclusive price: 106,00 € |
VAT-inclusive price: 125,08 € |
Standard photoelectric sensor diffuse. Ho using Φ4 mm in IP67 protection polarity NPN PUR,2m,3wire connection.
Short Specifications
| Operating principle | Diffuse |
|---|---|
| Sensing range typ. Max. | 0...24 mm |
| Light source | LED, infrared 880 nm |
| Housing size [mm] | Ø 4 |
| Sensitivity adjustment | No |
| Polarity | NPN |
| Output | Light-on |
| Interface | Standard output |
| Connection | PUR, 2 m, 3 wire |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
-
LLR-M05MA-NM
