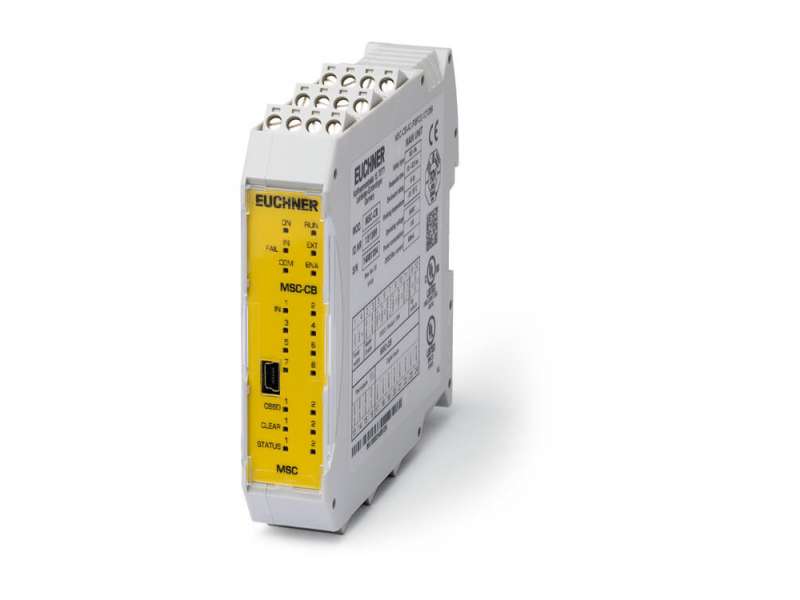

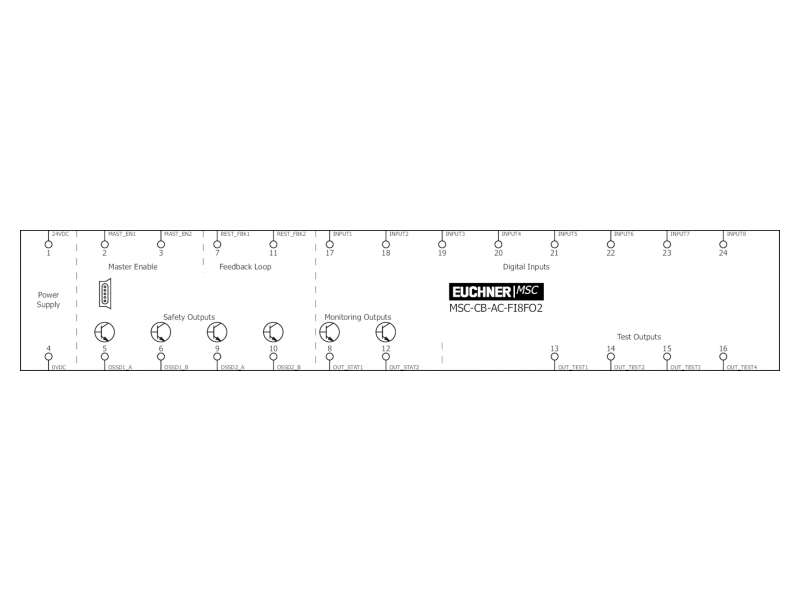

Safety relay MSC-CB
- Freely programmable small safe control system
- 8 single-channel /4 dual-channel inputs
- 2 control inputs
- 2 semiconductor outputs (PL e, category 4)
- 2 door monitoring outputs
- PC connection for the software "EUCHNER Safety Designer"
- Optional memory module for configuration
- Compact housing with width of only 22.5mm
- Straightforward diagnostics via LED displays
- Plug-in screw terminals
Approvals
Mechanical values and environment
| Dimensions | 108 x 22.5 x 114.5 |
| Material | |
| Housing | Polyamide |
| Ambient temperature | -10 ... +55 °C |
| Atmospheric humidity | 10 ... 95 % rH |
| Degree of protection | IP20 |
| Mounting method | Mounting rail 35mm |
| Connection | Plug-in screw terminal |
| Cable length | max.100 m |
| USB port for PC connection | |
| Connection | USB type B - Mini |
| Cable length | max.3 m USB cable |
| Safety outputs OSSD1, OSSD2 | |
| Number of safety outputs | 2 |
| For module activation | |
| Number of inputs | 2 |
| Safety input 1...8 | |
| Number of inputs | 8 |
| External relay monitoring (EDM), automatic, manual operation | |
| Number of inputs | 2 |
| Status (can be programmed via software) | |
| Number of monitoring outputs | 2 |
| Pulse output 1...4 | |
| Number of outputs | 4 |
Electrical connection ratings
| Operating voltage DC | |
| UB | 24 V DC -20% ... +20% PELV |
| Overvoltage category according to IEC EN 60664-1 | II |
| Degree of contamination according to EN 60664-1 | 2 |
| Connection cross-section | 0,2 mm² 0,5 ... 2,5 mm² Screw terminal |
| Delay time | 0,0106 ... 0,0546 s + filter time |
| Power consumption | max.3 W |
| Safety outputs OSSD1, OSSD2 | |
| Test pulses | 0,1 ms |
| Inductive load | max.30 mH |
| Capacitive load | max.0,82 μF |
| Type of output | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| HIGH | UB-0,75 ... UB V DC |
| LOW | 0 ... 2 V DC |
| Output current | |
| Max. load at 24VDC | - ... 400 mA |
| For module activation | |
| Type of input | Semiconductor inputs, p-switching |
| Safety input 1...8 | |
| Type of input | Semiconductor inputs, p-switching |
| External relay monitoring (EDM), automatic, manual operation | |
| Type of input | Semiconductor inputs, p-switching |
| Status (can be programmed via software) | |
| Type of output | Semiconductor outputs, p-switching |
| Output current | max.100 mA |
| Pulse output 1...4 | |
| Test pulses | 0,2 ms |
| Type of output | Semiconductor outputs, p-switching |
Reliability values according to EN ISO 13849-1
| ESPE type | 4 |
| Performance Level | PL e |
| Category | 4 |
| PFHD | 6.06E-9 1/h |
| SIL CL | 3 |
| Mission time | 20 y |
-
