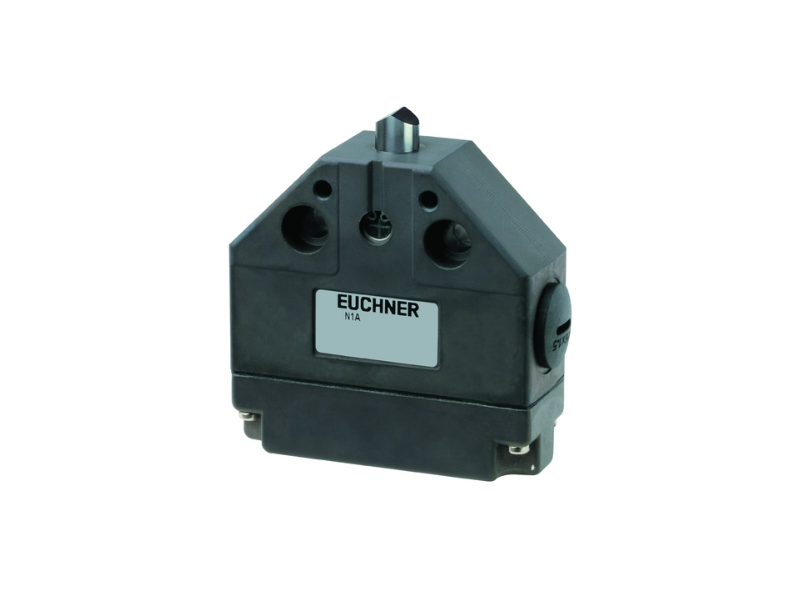

EUCHNER Single hole fixing limit switch N1AD508LE060-M; 087218
Single hole fixing limit switch N1AD, chisel plunger Housing according to DIN 43693 LED indicator Cable entry M16x1.5...
Цена по барање
Single hole fixing limit switch N1AD, chisel plunger
- Housing according to DIN 43693
- LED indicator
- Cable entry M16x1.5
Approvals
Electrical connection values
| Connection cross section | 0.34 ... 1.5 mm² |
| Display module | |
| AC/DC | 12 ... 60 ... 60 V LED |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Utilization category | |
| AC-15 | 6 A 230 V |
| DC-13 | 6 A 24 V |
| Short circuit protection according to IEC 60269-1 | 10A gG |
| Switching current | |
| min. at DC 24V | 10 mA |
| thermal rated current Ith | 10 A |
Mechanical values and environment
| Approach speed | 0.01 ... 40 m/min |
| Connection type | |
| 2 x | M16 x 1.5 |
| Number of switching elements | 1 |
| Number of positively driven contacts | 1 |
| Design | Housing according to DIN 43693 |
| Actuating element | Chisel plunger |
| Actuating force | min. 15 N |
| Installation orientation | any |
| Mechanical life | 30 x 10⁶ |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Monitoring of the guard position | |
| B10D | 20 x 10⁶ |
