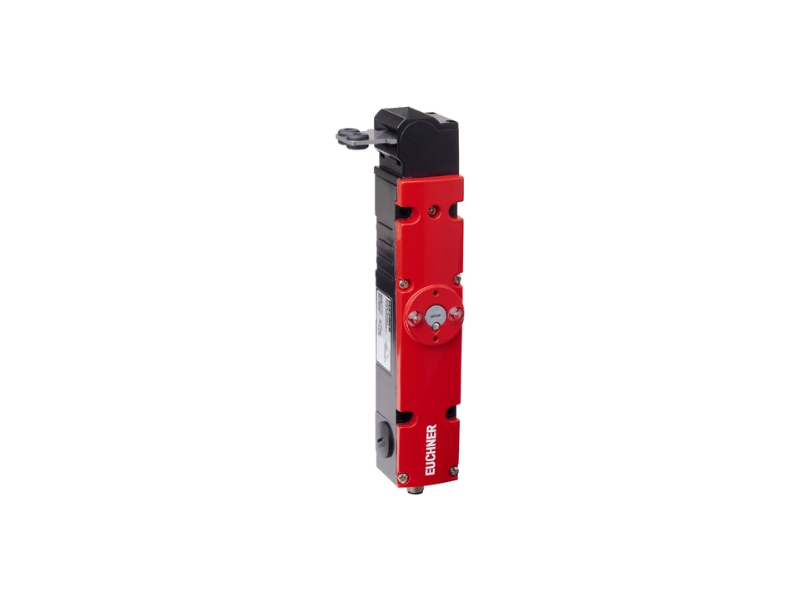

EUCHNER Safety switch TX1B-A024SEM4AS1C1991; 095914
Safety switch TX ASi, plug connector M12 (closed-circuit current principle) Auxiliary release on the front Plug connector M12 with escape release...
Цена по барање
Safety switch TX ASi, plug connector M12 (closed-circuit current principle)
- Auxiliary release on the front
- Plug connector M12
- with escape release
Approvals
Electrical connection values
| ASI operating current | max. 45 mA |
| ASI data in | |
| according to AS-i Safety at Work | D0, D1, D2, D3 |
| ASI data out | |
| LED green | D2 |
| LED red | D1 |
| Guard locking solenoid | D0 |
| ASI auxiliary voltage | |
| IEC 60742, PELV | 24 V -15% ... +10% |
| ASI auxiliary current | 300 mA |
| ASI slave type | |
| according to ASI specification 2.1 | ID code: B |
| according to ASI specification 2.1 | EA code: 7 |
| ASI voltage | 22.5 ... 30 ... 31.6 V |
| Solenoid duty cycle | 100 % |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Connection type | |
| 1 x | Plug connector M12 |
| Number of door position positively driven contacts | |
| according to AS-i Safety at Work | 1 |
| Number of guard lock monitoring positively driven contacts | |
| according to AS-i Safety at Work | 1 D2,D3 |
| Extraction force | 35 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Installation orientation | any |
| Insertion depth | 32 mm |
| Mechanical life | 1 x 10⁶ |
| Retention force | 20 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +50 °C |
| Material | |
| Housing | Die-cast alloy cathodically dipped |
| Contact | Silver alloy, gold flashed |
| Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Monitoring of guard locking and the guard position | |
| B10D | 6 x 10⁶ |
Miscellaneous
| C number | |
| C1991 | Escape release |
In combination with actuator ACTUATOR-X-GNQ
| Overtravel | 8 mm |
In combination with actuator ACTUATOR-X-GQ
| Overtravel | 1 mm |
