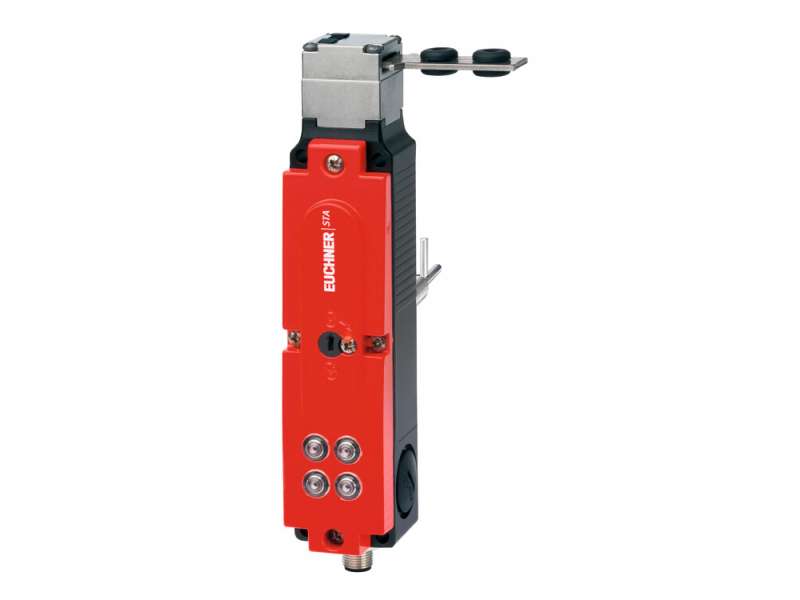

EUCHNER Safety switch STA ASi, plug connector M12, escape release ; 119732
Safety switch STA ASi, plug connector M12, escape release (closed-circuit current principle) Escape release on the rear Auxiliary release on the front...
Цена по барање
Safety switch STA ASi, plug connector M12, escape release (closed-circuit current principle)
- Escape release on the rear
- Auxiliary release on the front
Approvals
Mechanical values and environment
| Housing material | Alloy - die-cast |
| Weight | |
| Net | 0,6 kg |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP67 |
| Mechanical life | 1 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |
| Number of door position positively driven contacts | |
| According to As-i Safety at Work | 1 D0,D1 |
| Number of guard lock monitoring positively driven contacts | |
| According to As-i Safety at Work | 1 D2,D3 |

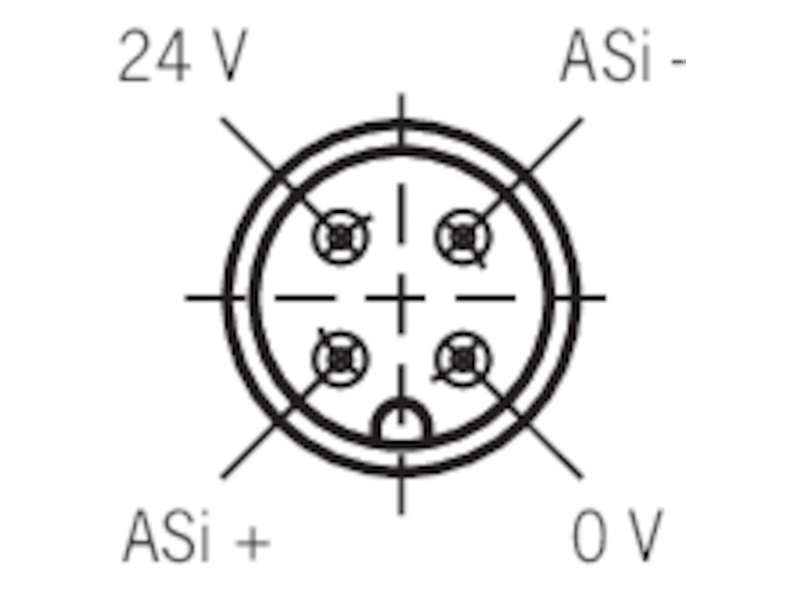

| Connection | |
| 1 x | Plug connector M12 |
| Approach speed | max.20 m/min |
| Actuation frequency | max.1200 1/h |
| Guard locking principle | Closed-circuit current principle |
| Locking force Fmax | 3000 N |
| Locking force FZh | 2300 N |
| Retention force | 20 N |
| Extraction force | 30 N |
| Actuating force | 35 N |
| Insertion depth | 24,5 mm |
Electrical connection ratings
| ASi voltage | 30 V 22,5 ... 31,6 V |
| ASi operating current | max.45 mA |
| ASi auxiliary voltage | |
| IEC 60742, PELV | 24 V -15% ... +10% |
| ASi auxiliary current | 300 mA |
| Solenoid duty cycle | 100 % |
| ASi slave type | |
| According to ASI specification 2.1 | EA code: 7 |
| ID code: B | |
| ASi data in | |
| According to ASI safety at work | D0,D1,D2,D3 |
| ASi data out | |
| Guard locking solenoid | D0 |
| LED green | D2 |
| LED red | D1 |
| ASi LED | |
| LED green | Power |
| LED red | Fault |
Reliability values according to EN ISO 13849-1
| B10D | 11,5 x 106 |
In combination with Actuator BETAETIGER-S-GT-SN
Mechanical values and environment
| Overtravel | 5 mm |
-
258788
