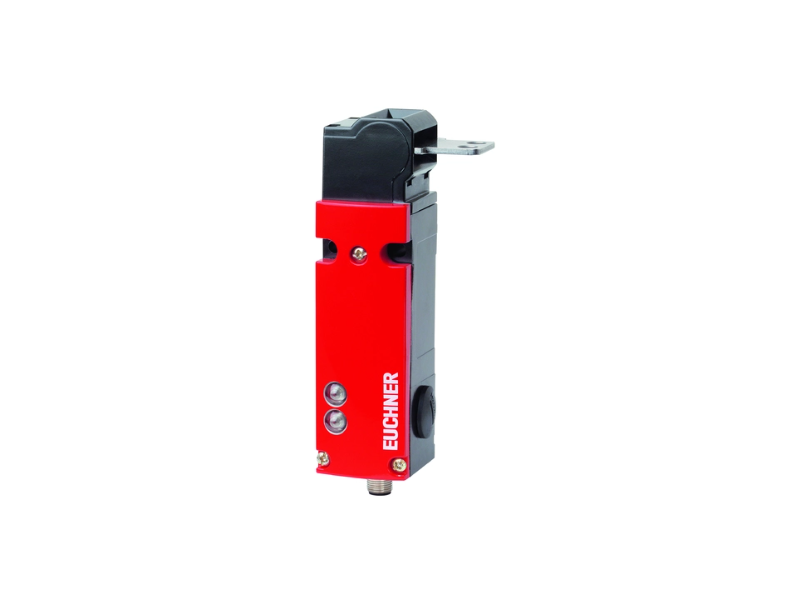

EUCHNER Safety switch NX1-2131ASEM4-AS1; 094362
Safety switch NX ASi, plug connector M12 LED function display...
Цена по барање
Safety switch NX ASi, plug connector M12
- LED function display
Approvals
Electrical connection values
| ASI operating current | max. 45 mA |
| ASI data in | |
| according to AS-i Safety at Work | D0, D1, D2, D3 |
| ASI data out | |
| LED red | D1 |
| LED green | D2 |
| ASI slave type | |
| according to ASI specification 2.1 | EA code: 7 |
| according to ASI specification 2.1 | ID code: B |
| ASI voltage | 22.5 ... 30 ... 31.6 V |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Connection type | |
| 1 x | M12 plug connector, 4-pin |
| Number of door position positively driven contacts | |
| according to AS-i Safety at Work | 2 |
| Extraction force | 50 N |
| Actuation frequency | max. 6700 1/h |
| Actuating force | max. 40 N |
| Installation orientation | any |
| Mechanical life | 2 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Alloy cathodically dipped |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 4.5x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
In combination with actuator ACTUATOR-X-GNQ
| Overtravel | 8 mm |
In combination with actuator ACTUATOR-X-GQ
| Overtravel | 1 mm |
