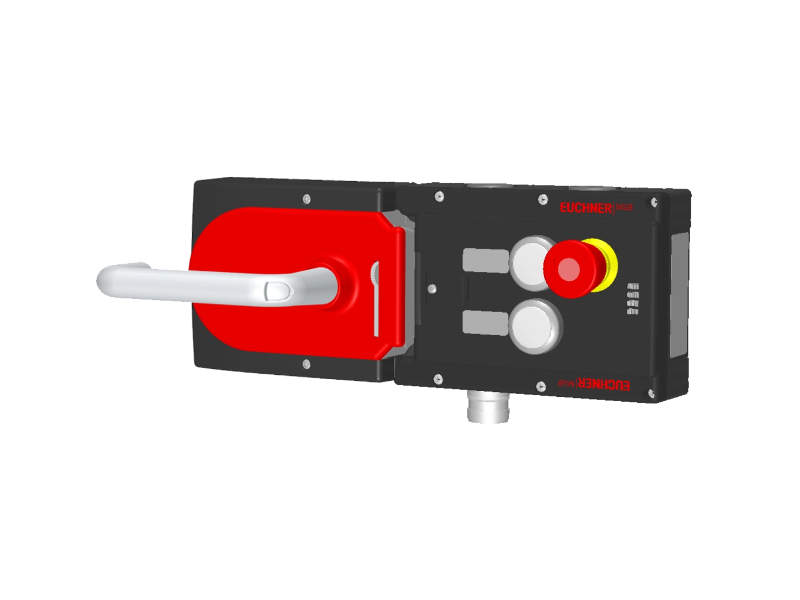

EUCHNER Locking set MGB-L2H-APA-L-110075; 110075
Locking set MGB-L2H-APA... (guard locking by solenoid force) with 2 pushbuttons, emergency stop, incl. label carrier, RC18 Guard locking with guard lock monitoring...
Цена по барање
Locking set MGB-L2H-APA... (guard locking by solenoid force) with 2 pushbuttons, emergency stop, incl. label carrier, RC18
- Guard locking with guard lock monitoring
- Emergency stop according to ISO 13850 (illuminated)
- 2 pushbuttons (illuminated, wh, wh)
- incl. adhesive labels
- With plug connector RC18
- Unicode
Approvals
Locking modules MGB-L2-APA-AB6A1-S1-L-110076 (Order no. 110076)
Operating and display elements
| Occupancy diagram | L1 |
| Item | Extras | Color | Designation1 | Number | LED | Note slide-in label | Slide-in label | Version | Switching element |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Emergency stop illuminated | 2 PD | |||||||
| 2 | white | Anforderung Zutritt | Illuminated pushbutton | 1NO | |||||
| 3 | white | Quitt. Start Station | Illuminated pushbutton | 1NO |
Electrical connection values
| Rated insulation voltage Ui | 30 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Discrepancy time | |
| between FO1A and FO1B | max. 10 ms |
| Utilization category | |
| DC-13 | 24V 200mA |
| Risk time according to EN 60947-5-3 | max. 350 ms |
| Safety class | III |
| Transponder coding | Unicode |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Solenoid control input IMP1, IMP2, IMM | |
| Test pulse duration | max. 5 ms |
| Test pulse interval | min. 100 ms |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | UA V |
| Switching current | 1 ... 10 mA |
| LED power supply | 24 V DC |
| Emergency stop | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 5 ... 24 V |
| Switching current | 1 ... 100 mA |
| LED power supply | 24 V DC |
| Monitoring outputs OD, OT, OL, OI | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | UA-2V ... UA V DC |
| Output current | max. 50 mA |
| Safety outputs FO1A, FO1B | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| UFO1A /UFO1B LOW | 0 ... 1 V DC |
| UFO1A /UFO1B HIGH | UB-2V ... UB V DC |
| Output current | |
| per safety output FO1A / FO1B | 1 ... 200 mA |
| Test pulse duration | max. 0.3 ms |
| Test pulse interval | min. 100 ms |
| Power supply UA | |
| Operating voltage DC | |
| UA | 24 V DC -15% ... +10% |
| Current consumption | |
| IUA | max. 375 mA |
| Power supply UB | |
| Operating voltage DC | |
| UB | 24 V DC -15% ... +10% |
| Current consumption | |
| IUB | max. 80 mA |
Mechanical values and environment
| Connection type | Plug connector RC18 |
| Installation orientation | Door hinge DIN left |
| Switching frequency | 0.25 Hz |
| Mechanical life | |
| in case of use as door stop, and 1 Joule impact energy | 0.1 x 10⁶ |
| 1 x 10⁶ | |
| Degree of protection | IP65 |
| Ambient temperature | |
| at UB = 24 V DC | -20 ... +55 °C |
| Material | |
| Housing | Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel |
| Locking force FZh | 2000 N |
| Guard locking principle | Open-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Mission time | 20 y |
| Emergency stop | |
| B10D | |
| Emergency stop |
