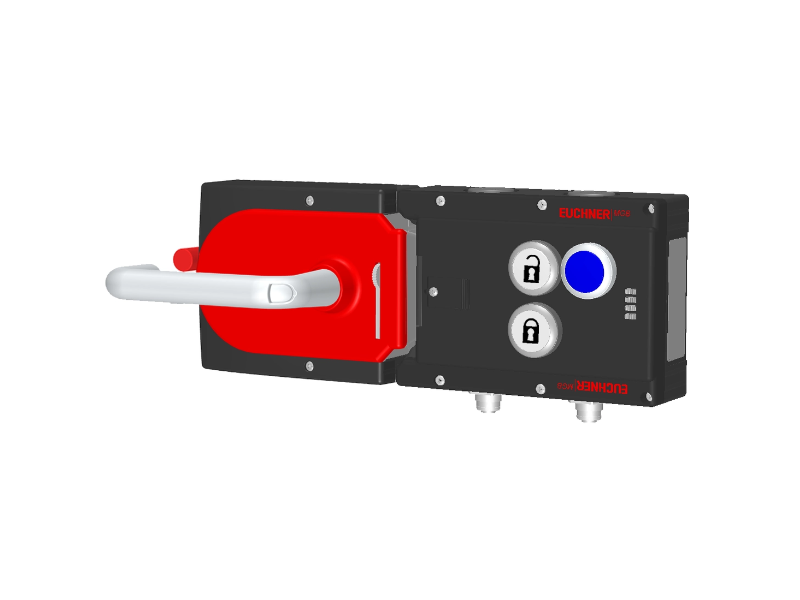

EUCHNER Locking set MGB-L1HE-APA-L-156003; 156003
Locking set MGB-L1HE-APA..., (guard locking by spring force) with 3 pushbuttons, 2 x M12 Guard locking with guard lock monitoring 3 pushbuttons (illuminated, bu...
Цена по барање
Locking set MGB-L1HE-APA..., (guard locking by spring force) with 3 pushbuttons, 2 x M12
- Guard locking with guard lock monitoring
- 3 pushbuttons (illuminated, bu wh, wh)
- With plug connector M12, 5-pin
- With plug connector M12, 8-pin
- With escape release
- Unicode
- Connection for Bihl-Wiedemann modules BW 3376 and BW 3377
Approvals
Escape release MGB-E-A-100465 (Order no. 100465)
Mechanical values and environment
| Installation orientation | any |
| Mechanical life | 1 x 10⁶ |
| Ambient temperature | -25 ... +55 °C |
| Material | |
| Housing | Die-cast zinc/stainless steel, powder-coated |
Miscellaneous
| Product version number | V2.0.0 |
Handle modules MGB-H-AA1A1-L-106619 (Order no. 106619)
Mechanical values and environment
| Installation orientation | Door hinge DIN left |
| Degree of protection | IP65 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Housing | Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel |
Miscellaneous
| Product version number | V3.0.0 |
Locking modules MGB-L1-APA-AD3A1-S9-L-156001 (Order no. 156001)
Operating and display elements
| Occupancy diagram | L1 |
| Item | Extras | Color | Designation1 | Number | LED | Note slide-in label | Switching element | Slide-in label | Version |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Blue | 1NO | Illuminated pushbutton | ||||||
| 2 | printed | white | 1NO | Illuminated pushbutton | |||||
| 3 | printed | white | 1NO | Illuminated pushbutton |
Electrical connection values
| Rated insulation voltage Ui | 30 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Discrepancy time | |
| between FO1A and FO1B | max. 10 ms |
| Utilization category | |
| DC-13 | 24V 200mA |
| Risk time according to EN 60947-5-3 | max. 350 ms |
| Safety class | III |
| Transponder coding | Unicode |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Solenoid control input IMP1, IMP2, IMM | |
| Test pulse duration | max. 5 ms |
| Test pulse interval | min. 100 ms |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | UA V |
| Switching current | 1 ... 10 mA |
| LED power supply | 24 V DC |
| Monitoring outputs OD, OT, OL, OI | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | UA-2V ... UA V DC |
| Output current | max. 50 mA |
| Safety outputs FO1A, FO1B | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| UFO1A /UFO1B LOW | 0 ... 1 V DC |
| UFO1A /UFO1B HIGH | UB-2V ... UB V DC |
| Output current | |
| per safety output FO1A / FO1B | 1 ... 200 mA |
| Test pulse duration | max. 0.3 ms |
| Test pulse interval | min. 100 ms |
| Power supply UA | |
| Operating voltage DC | |
| UA | 24 V DC -15% ... +10% |
| Current consumption | |
| IUA | max. 375 mA |
| Power supply UB | |
| Operating voltage DC | |
| UB | 24 V DC -15% ... +10% |
| Current consumption | |
| IUB | max. 80 mA |
Mechanical values and environment
| Connection type | |
| Plug connector SM5 | |
| Plug connector SM8 |
