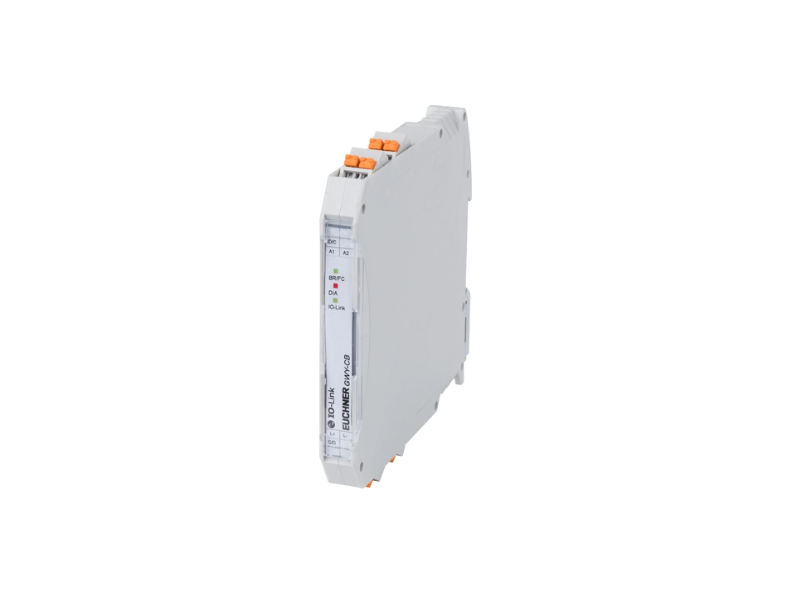

EUCHNER IO-Link Gateway for BP/BR switches GWY-CB-1-BR-IO-165049; 165049
IO-Link Gateway for BP/BR switches IO-Link device for reading process and device data of BP/BR safety switches and transferring them to a higher-level control system...
Цена по барање
IO-Link Gateway for BP/BR switches
- IO-Link device for reading process and device data of BP/BR safety switches and transferring them to a higher-level control system
- Control of guard locking of BP/BR switches, depending on the switch used
- Compact version measuring only 12.5 mm in width
- Rail mounting
- LED status indicators
Operating and display elements
| LED display | 1x operating voltage display PWR green, 1x status display DIA red, 1x IO-Link green |
Electrical connection values
| Connection cross section | 0.2 ... 1.5 mm² |
| Rated insulation voltage Ui | 30 V |
| Duty cycle | 100 % |
| Overvoltage category according to IEC EN 60664-1 | 2 |
| Power dissipation | max. 0.1 W |
| Degree of contamination (external, according to EN 60947-1) | 2 |
| IO-Link | |
| Process data update | 5 ms |
| Power supply | |
| Supply: L+/L | 24 24 V DC -20% / +25% |
| Current consumption | |
| Supply: L+/L- | 14 mA |
| Reverse polarity protection | Serial reverse polarity protection |
| Supply A1/A2 | |
| Operating voltage DC | |
| Us | 24 V DC -20% ... +25% |
| Current consumption | 60 mA |
| Reverse polarity protection | Serial reverse polarity protection |
Mechanical values and environment
| Stripping length | 8 mm |
| Dimensions | 12.5 x 108.6 x 114.5 |
| Connection type | plug-in spring terminals |
| Installation orientation | vertical or horizontal |
| Atmospheric humidity | max. 75 % rH |
| Mounting type | Mounting rail 35 mm according to DIN EN 60715 TH35 |
| Degree of protection | |
| IP20 | |
| IP54 | |
| Ambient temperature | |
| (operation) | -25 ... +60 °C |
| Material | |
| Housing | PBT, gray |
| permissible shock and vibration load | 10 Hz...150 Hz, 2 g |
| IO-Link | |
| Connection type | spring terminals |
| Connection type | 3-conductor |
| Number of inputs | |
| Switching and communication line: C | 1 |
| Number of masters | 1 |
Miscellaneous
| IO-Link | |
| Product version number | Version 1.1 |
Interface
| IO-Link | |
| Data rate | 230 kbit/s |
