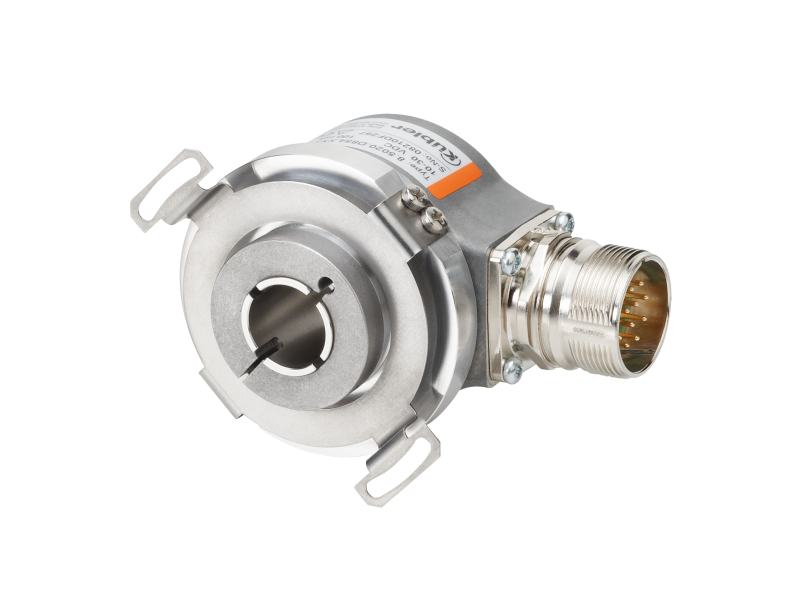

Kuebler Inkrementalni enkoder Sendix KIH50, šuplje vratilo , ekonomična varijanta ; 8.KIH50.XXXX.XXXX
The economical sensor solution. The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are...
Price on request
The economical sensor solution.
The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines.
Robust
- Resistant zinc pressure die-cast housing and protection up to IP65.
- Wide temperature range from -20°C to +70°C.
- Prevent machine downtime thanks to robust bearing construction in "Safety-Lock™ Design".
- Suitable connection variants for each specific case: Cable connection, M12 connectors and M23 connectors.
- Versatile mounting options.
- Up to 5000 pulses per revolution.
| Mechanical | |
|---|---|
| Dimension | Ø 50 mm |
| Shaft type |
8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through |
| Flange type |
Ø 50.80 mm Ø 63.00 mm Ø 65.00 mm |
| Working temperature | -20 °C ... +70 °C |
| Protection level | IP65 |
| Connection types |
Radial cable Tangential cable M23 connector radial M12 connector radial |
| Max. rotational speed | 6.000 min-1 |
| Weight | 170 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 5.000 ppr incremental |
| Power supply |
5 V DC 5...30 V DC 10...30 V DC |
| Interfaces |
Gegentakt TTL / RS422 Open Collector |
-
KIS50-KIH50 en
