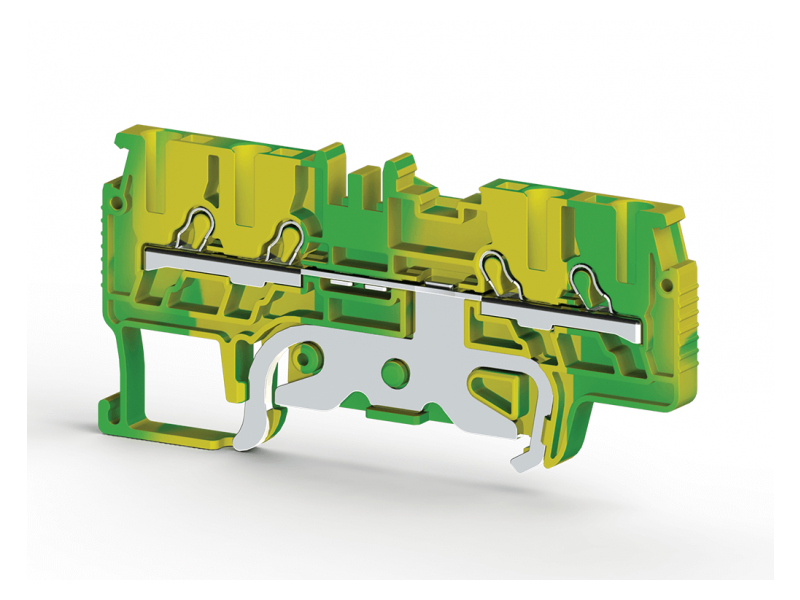

Klemsan Utična stezaljka sa 2 ulazna i 2 izlazna terminala za uzemljenje PYK 1.5MCT ;336450
1,5mm2,push-in type,2 input 2 output earth terminal block,Insulation material PA,Yellow-Green...
VAT-exclusive price: 1,07 € |
VAT-inclusive price: 1,27 € |
1,5mm2,push-in type,2 input 2 output earth terminal block,Insulation material PA,Yellow-Green
| General Product Information | Insulating material | PA | |
| Inflammability class acc. to UL 94 | V2 | ||
| Packing Unit | 70 | ||
| Weight (g) | --- | ||
| Dimensions | Width | 4.2 mm | |
| Length | 75.10 mm | ||
| Height (MR 32) | --- mm | ||
| Height (MR 35x7.5) | 37.80 mm | ||
| TSE / CE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 1.5 mm2 | ||
| Norm | EN 60947-7-1/EN 60947-7-2 | ||
| VDE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 1.5 mm2 | ||
| VDE Norm | --- | ||
| UL / CSA Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 1.5 | ||
| ATEX Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 1.5 | ||
| Connection Data | Minimum solid strand cross section | 0.5 mm2 | |
| Maximum solid Strand cross section | 2.5 mm2 | ||
| Minimum fine Strand cross section | 0.5 mm2 | ||
| Maximum fine strand cross section | 2.5 mm2 | ||
| AWG Conductor Range | 22-14 | ||
| Connection Type | practical spring, push-in/pratik yay baskılı | ||
| Insulation Stripping length | 10 mm | ||
