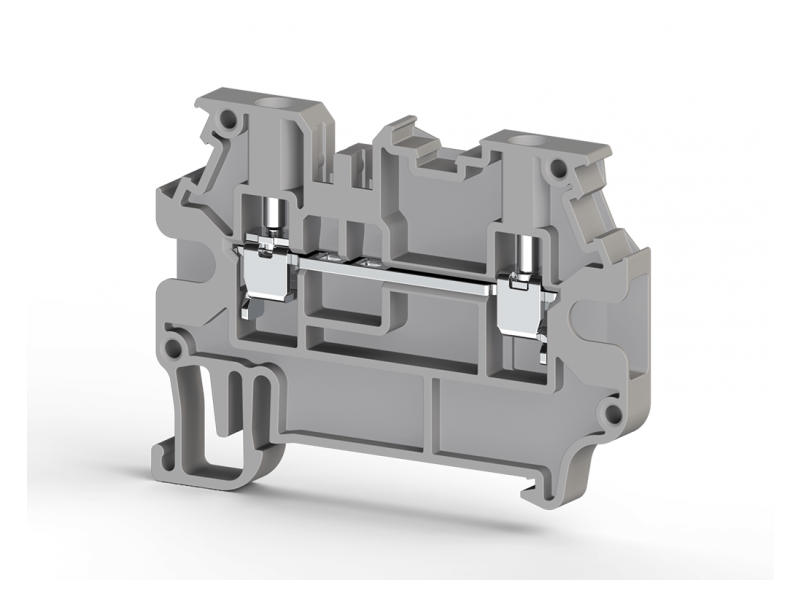

Klemsan Stezaljka sa duplom poprečnom vezom 2.5mm² ; 304409
2,5 mm2, Screw connection, Feed-through terminal block, Insulation material PA, Grey...
VAT-exclusive price: 0,71 € |
VAT-inclusive price: 0,84 € |
2,5 mm2, Screw connection, Feed-through terminal block, Insulation material PA, Grey
| General Product Information | Insulating material | PA | |
| Inflammability class acc. to UL 94 | V2 | ||
| Packing Unit | 50 | ||
| Weight (g) | |||
| Dimensions | Width | 5 mm | |
| Length | 57.50 mm | ||
| Height (MR 32) | --- mm | ||
| Height (MR 35x7.5) | 44.20 mm | ||
| TSE / CE Technical Data | Nominal Voltage | 800 V ~ | |
| Nominal Current | 24 A | ||
| Cross Section | 2.5 mm2 | ||
| Norm | IEC 60947-7-1 | ||
| VDE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 2.5 mm2 | ||
| VDE Norm | --- | ||
| UL / CSA Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 2.5 | ||
| ATEX Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 2.5 | ||
| Connection Data | Minimum solid strand cross section | 0.5 mm2 | |
| Maximum solid Strand cross section | 4 mm2 | ||
| Minimum fine Strand cross section | 0.5 mm2 | ||
| Maximum fine strand cross section | 4 mm2 | ||
| AWG Conductor Range | 26-12 | ||
| Connection Type | screw/vidalı | ||
| Insulation Stripping length | 10 mm | ||
| Tightening torque | 0.4/0.6 Nm | ||
