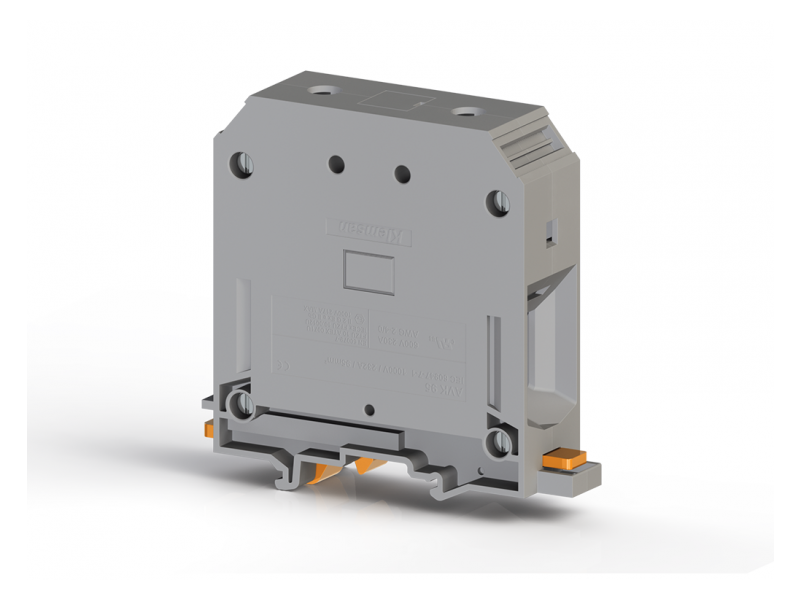

Klemsan Redna stezaljka za velike struje AVK 95mm² 232A ; 304340
95mm2,Allen Head(Imbus type),single deck feed through terminal block,Insulation material PA,Grey...
VAT-exclusive price: 9,58 € |
VAT-inclusive price: 11,30 € |
95mm2,Allen Head(Imbus type),single deck feed through terminal block,Insulation material PA,Grey
| General Product Information | Insulating material | PA | |
| Inflammability class acc. to UL 94 | V2 | ||
| Packing Unit | 6 | ||
| Weight (g) | |||
| Dimensions | Width | 25 mm | |
| Length | 80 mm | ||
| Height (MR 32) | 94.5 mm | ||
| Height (MR 35x7.5) | 97.5 mm | ||
| TSE / CE Technical Data | Nominal Voltage | 1000 V ~ | |
| Nominal Current | 232 A | ||
| Cross Section | 95 mm2 | ||
| Norm | EN 60947-7-1 | ||
| VDE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 95 mm2 | ||
| VDE Norm | --- | ||
| UL / CSA Technical Data | Nominal Voltage | 600 V ~ | |
| Nominal Current | 230 A | ||
| Cross Section | AWG/2-4/0 | ||
| ATEX Technical Data | Nominal Voltage | 1000 V ~ | |
| Nominal Current | 217 A | ||
| Cross Section | --- | ||
| Connection Data | Minimum solid strand cross section | 25 mm2 | |
| Maximum solid Strand cross section | 95 mm2 | ||
| Minimum fine Strand cross section | 35 mm2 | ||
| Maximum fine strand cross section | 95 mm2 | ||
| AWG Conductor Range | 2-4 | ||
| Connection Type | screw/vidalı | ||
| Insulation Stripping length | 25 mm | ||
| Tightening torque | 6-10 Nm | ||
