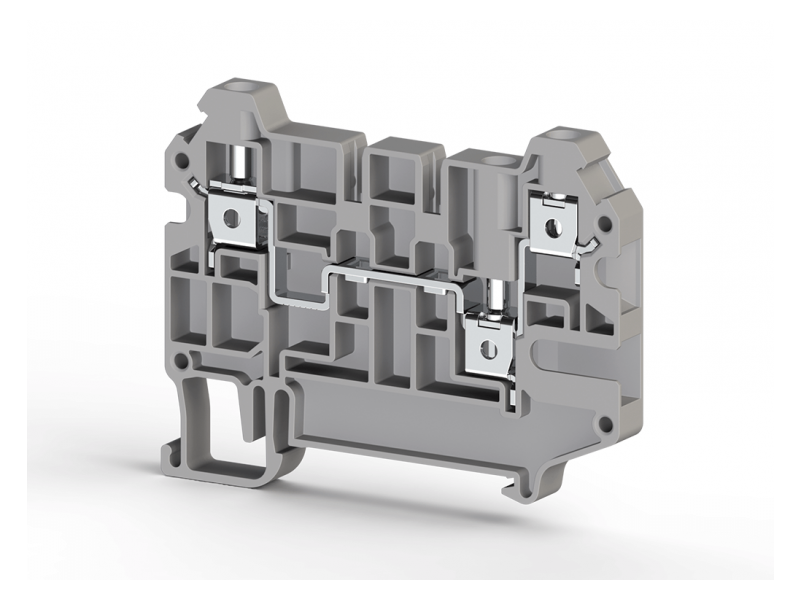

Klemsan Redna stezaljka sa 2 izlazna terminala AVK 4mm² ; 325229
4mm2,screw type,single deck 1 input 2 output terminal block,Insulation material PA,Grey...
VAT-exclusive price: 1,67 € |
VAT-inclusive price: 1,97 € |
4mm2,screw type,single deck 1 input 2 output terminal block,Insulation material PA,Grey
| General Product Information | Insulating material | PA | |
| Inflammability class acc. to UL 94 | V2 | ||
| Packing Unit | 50 | ||
| Weight (g) | --- | ||
| Dimensions | Width | 6 mm | |
| Length | 65.2 mm | ||
| Height (MR 32) | --- mm | ||
| Height (MR 35x7.5) | 51.8 mm | ||
| TSE / CE Technical Data | Nominal Voltage | 500 V ~ | |
| Nominal Current | 32 A | ||
| Cross Section | 4 mm2 | ||
| Norm | EN60947-7-1/EN60947-7-2 | ||
| VDE Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 4 mm2 | ||
| VDE Norm | |||
| UL / CSA Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 4 | ||
| ATEX Technical Data | Nominal Voltage | --- V ~ | |
| Nominal Current | --- A | ||
| Cross Section | 4 | ||
| Connection Data | Minimum solid strand cross section | 0.5 mm2 | |
| Maximum solid Strand cross section | 6 mm2 | ||
| Minimum fine Strand cross section | 0.5 mm2 | ||
| Maximum fine strand cross section | 6 mm2 | ||
| AWG Conductor Range | --- | ||
| Connection Type | screw/vidalı | ||
| Insulation Stripping length | 10 mm | ||
| Tightening torque | 0.5/0.8 Nm | ||
