Name: Klemsan Multimetar ECRAS VCF ; 606218
Brand: Klemsan
SKU: 606218
Price: 98.00 RSD
Availability: OutOfStock

Klemsan Multimetar ECRAS VCF ; 606218

Multimeter ECRAS by KLEMSAN is an advanced multimeter that can measure 3 phases in electric networks and can be controlled by 2 relay outputs. ECRAS offers a very...

Brand: Klemsan
Product Code: 606218
Availability: Check availability

VAT-exclusive price: 83,06 €

VAT-inclusive price: 98,00 €

Qnt:

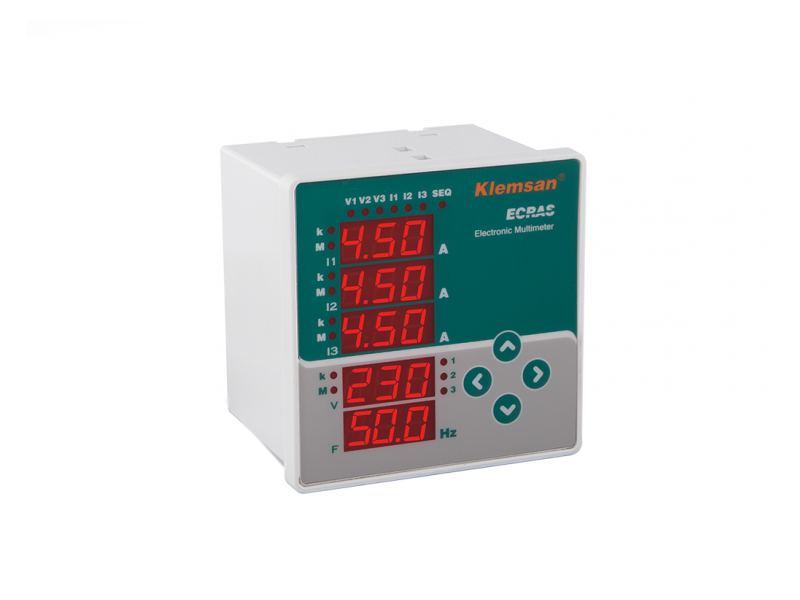

Multimeter ECRAS by KLEMSAN is an advanced multimeter that can measure 3 phases in electric networks and can be controlled by 2 relay outputs. ECRAS offers a very precise measurements of basic electrical network. All measured data can be transferred to the remote monitoring system via modbus communication. Low/high limit threesold values for all electrical parameters can be defined and assigned to alarm relay outputs.

More in techincal specification and documentation.

General		Seven Segment Display	✔
		Password Protection	✔
		Current Transformer Ratio	1 - 5000
		Voltage Transformer Ratio	1 - 5000
		Connection Type	3F4T, 3F3T
		Measurements in Quadrants	4
		Number of Measurements in a Period	256
		LCD/Display Refresh Period	1 sec.
		Networks	TT, TN, IT
		Min./Max./Demand Values	✔
Current Measurement Input		Measurement Range	10mA - 6A AC
		Overvoltage Category	300 V Cat II
		Measurement Surge Voltage	2 kV
		Power Consumption	<0.2 VA
		Intermittent Overload	100 A for 1 sec.
		Sampling Frequency between 45-65 Hz	12.8 kHz
Voltage Measurement Input		Overvoltage Category	300 V Cat III
		Measured Range L-N	1-300 Vrms
		Measured Range L-L	2-500 Vrms
		Measured Frequency Range	45-65 Hz
		Power Consumption	<0.1 VA
		Sampling Frequency between 45-65 Hz	12.8 kHz
Supply	Voltage	AC	85-300V
		DC	85-300V
	Consumption	AC	<6VA
		DC	<3W
Supply		Frequency	45-65Hz
Data Logging with timestamp		Demand
		Alarm Records
Mechanical Properties		Weight (g)	272 g
		Protection Class	Front IP40 / Rear IP20
		Mounting Type	Panel Mount
Cable Cross Sections	Supply, Voltage, Current, Relay Outputs	Stranded:	2.5mm² - 14AWG
		Solid:	4mm² - 12AWG, 2x1.5mm² - 2x16AWG
	Digital I/O, RS 485, Analog Output	Stranded:	1.5mm² - 16AWG
		Solid:	1.5mm² - 16AWG, 2x0.75mm² - 2x18AWG
Ambient Conditions		Operating Temperature	-20°C +70°C
		Storing Temperature	-30°C +80°C
		Relative Humidity (No Condensation)	Max. 95%
EMC-EMI		300 VAC CAT II according to IEC 61010-1	✔
		EN 55011/A1:2010, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN61000-4-11
