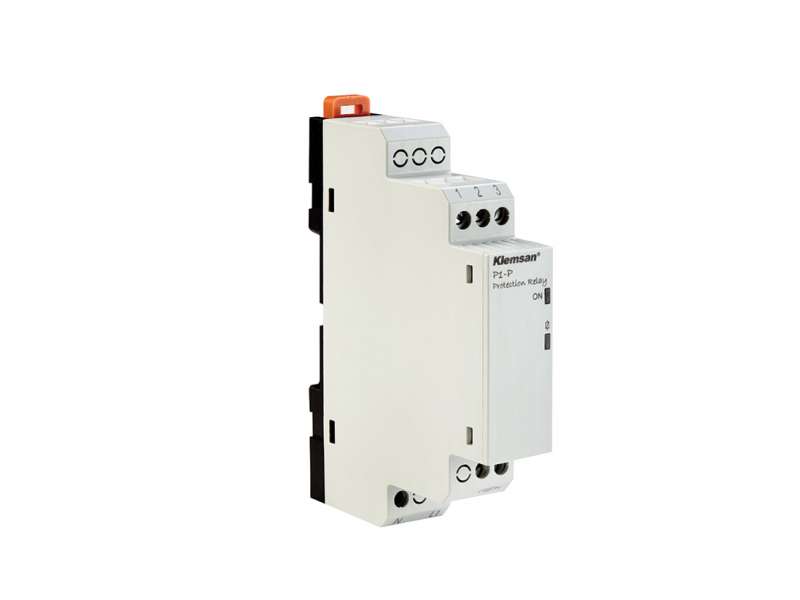

Klemsan Motor protection relay P1-P ; 270151
Motor protection relay-P series. Reliable,easy to use. More features in technical specification and documentation....
VAT-exclusive price: 21,37 € |
VAT-inclusive price: 25,21 € |
Motor protection relay-P series. Reliable,easy to use.
More features in technical specification and documentation.
More features in technical specification and documentation.
| General | Casing Width (mm) | 17,5 | |
| Connections | Screw Terminal | ||
| Network | 1Ø with Neutral | ||
| Response Time for Monitoring Any Function | Maks. 250ms | ||
| Type of Output | Relay | ||
| Supply Frequency | 35-70Hz | ||
| Control Input Voltage Range | --- | ||
| Operating Frequency | 35-70Hz | ||
| Protection Class | IP20 | ||
| Mounting Type | Panel or Rail | ||
| EMC-EMI | ✔ | ||
| Packing Unit | 1 | ||
| Weight (g) | 65 | ||
| Packing Unit | 1 | ||

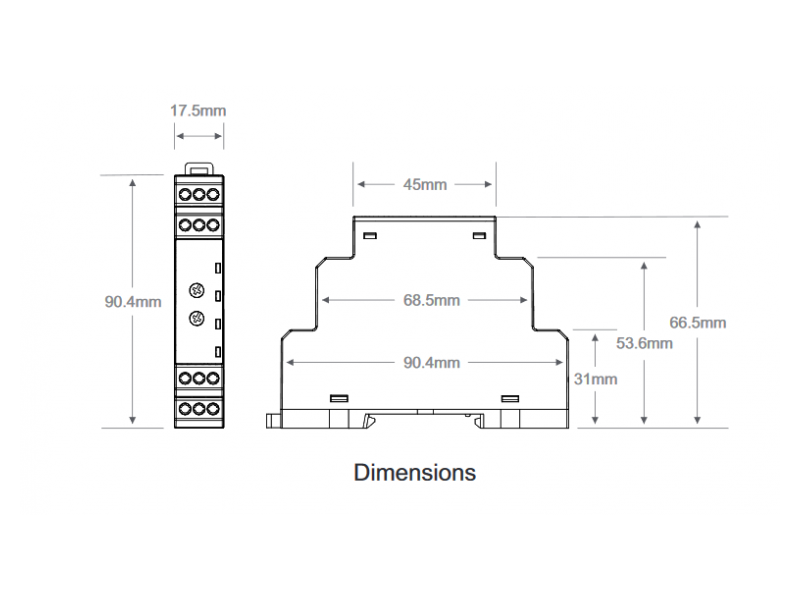

| Dimensions | --- | ||
| Monitoring Functions | PTC Protection | Fixed Delay Time | 2000ms |
| Threshold | 1100Ω | ||
| Auxilary Contacts | Type | 1 C/O (SPDT) | |
| Max. Ratings - AC (for NO Side) | 5A/250V;1250VA | ||
| Max. Ratings - DC (for NO Side) | 5A/30VDC;150W | ||
| Mechanical Lifetime | ≥107 operation | ||
| Electrical Lifetime Operations (for NO Side) | 5x104(5A@250VAC) 1x105(5A@30VDC) | ||
| Supply Voltage | DC | 18..320 | |
| AC | 18..320 | ||
| Ambient Conditions | Operating Temperature | -20°C +60°C | |
| Storing Temperature | -40°C +75°C | ||
| Relative Humidity (No Condensation) | Maks. 95% (no condensation) | ||
| Power Consumption | DC | --- | |
-
P SERIES EN 20102017
