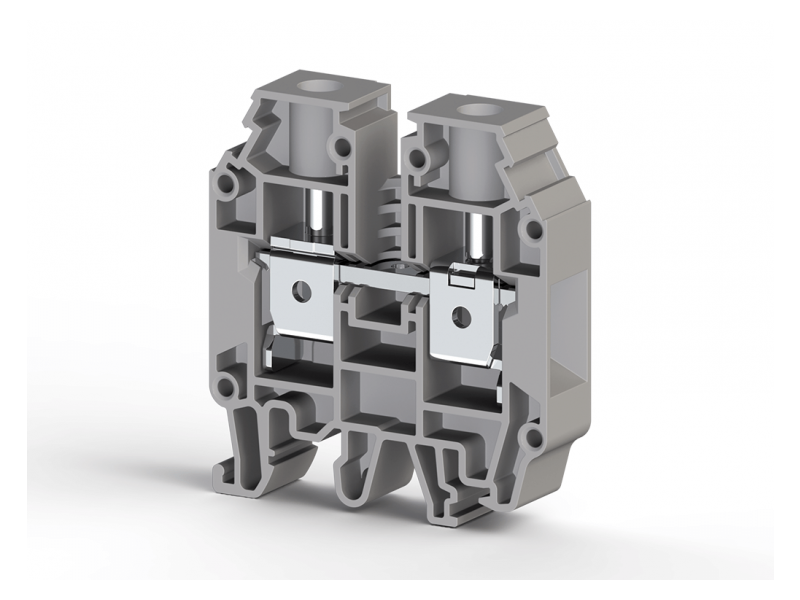

Klemsan Jednostruka standardna redna stezaljka 16mm² AVK RD 76A ; 304240
16mm2,screw type,single deck feed through terminal block,Insulation material PA,Grey...
VAT-exclusive price: 1,05 € |
VAT-inclusive price: 1,23 € |
16mm2,screw type,single deck feed through terminal block,Insulation material PA,Grey
| General Product Information | Insulating material | PA | |
| Inflammability class acc. to UL 94 | V2 | ||
| Packing Unit | 50 | ||
| Weight (g) | |||
| Dimensions | Width | 12 mm | |
| Length | 52.80 mm | ||
| Height (MR 32) | 58.70 mm | ||
| Height (MR 35x7.5) | 63.30 mm | ||
| TSE / CE Technical Data | Nominal Voltage | 750 V ~ | |
| Nominal Current | 76 A | ||
| Cross Section | 16 mm2 | ||
| Norm | EN 60947-7-1/N 60947-7-2 | ||
| VDE Technical Data | Nominal Voltage | 750 V ~ | |
| Nominal Current | 76 A | ||
| Cross Section | 16 mm2 | ||
| VDE Norm | IEC 60947-7-1 | ||
| UL / CSA Technical Data | Nominal Voltage | 600 V ~ | |
| Nominal Current | 80 A | ||
| Cross Section | 12-4 | ||
| ATEX Technical Data | Nominal Voltage | 630 V ~ | |
| Nominal Current | 76 A | ||
| Cross Section | --- | ||
| Connection Data | Minimum solid strand cross section | 1.5 mm2 | |
| Maximum solid Strand cross section | 25 mm2 | ||
| Minimum fine Strand cross section | 1.5 mm2 | ||
| Maximum fine strand cross section | 25 mm2 | ||
| AWG Conductor Range | 12-4 | ||
| Connection Type | screw/vidalı | ||
| Insulation Stripping length | 14 mm | ||
| Tightening torque | 1.2 Nm | ||
