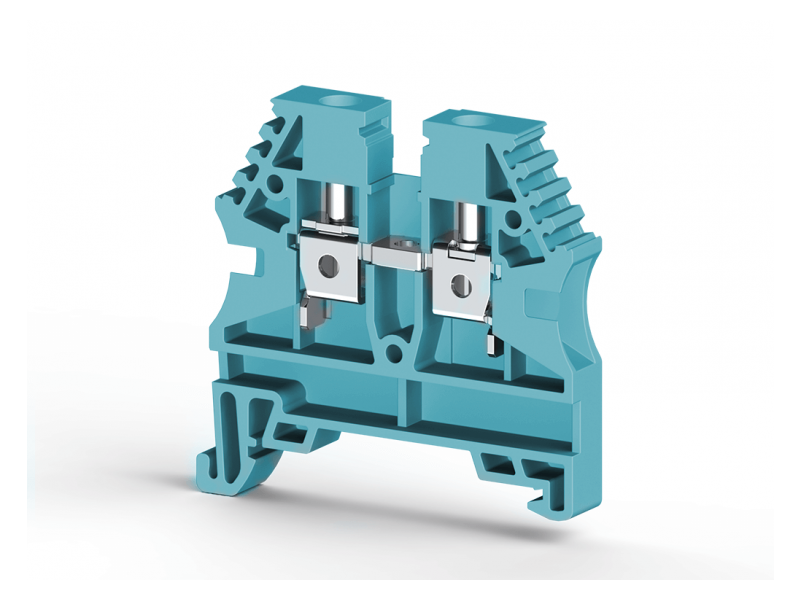

Klemsan 4mm2,screw type,single deck feed through terminal block,Insulation material PA,Blue , AVK 4; 304131
4mm2,screw type,single deck feed through terminal block,Insulation material PA,Blue , AVK 4; 304131...
VAT-exclusive price: 0,39 € |
VAT-inclusive price: 0,46 € |
4mm2,screw type,single deck feed through terminal block,Insulation material PA,Blue , AVK 4; 304131
| General Product Information | Insulating material | PA | |
| Inflammability class acc. to UL 94 | V2 | ||
| Packing Unit | 100 | ||
| Weight (g) | |||
| Dimensions | Width | 6 mm | |
| Length | 44.2 mm | ||
| Height (MR 32) | --- mm | ||
| Height (MR 35x7.5) | 44.5 mm | ||
| TSE / CE Technical Data | Nominal Voltage | 750 V ~ | |
| Nominal Current | 32 A | ||
| Cross Section | 4 mm2 | ||
| Norm | EN 60947-7-1 | ||
| VDE Technical Data | Nominal Voltage | 750 V ~ | |
| Nominal Current | 32 A | ||
| Cross Section | 4 mm2 | ||
| VDE Norm | IEC 60947-7-1 | ||
| UL / CSA Technical Data | Nominal Voltage | 600 V ~ | |
| Nominal Current | 30 A | ||
| Cross Section | AWG/26-10 | ||
| ATEX Technical Data | Nominal Voltage | 400 V ~ | |
| Nominal Current | 28 A | ||
| Cross Section | 4 | ||
| Connection Data | Minimum solid strand cross section | 0.5 mm2 | |
| Maximum solid Strand cross section | 6 mm2 | ||
| Minimum fine Strand cross section | 1.5 mm2 | ||
| Maximum fine strand cross section | 4 mm2 | ||
| AWG Conductor Range | 26-10 | ||
| Connection Type | screw/vidalı | ||
| Insulation Stripping length | 10 mm | ||
| Tightening torque | 0.5 Nm | ||
