INVERTEK DRIVES RJ45 BacNet connector for Optidrive Inverters - OPT-2-BNTSP-IN
The Invertek OPT-2-BNTSP-IN is a BACnet data cable splitter, designed to enable terminal block type connectivity for BACnet communication networks. Both the Optidrive...
VAT-exclusive price: 45,00 € |
VAT-inclusive price: 53,10 € |

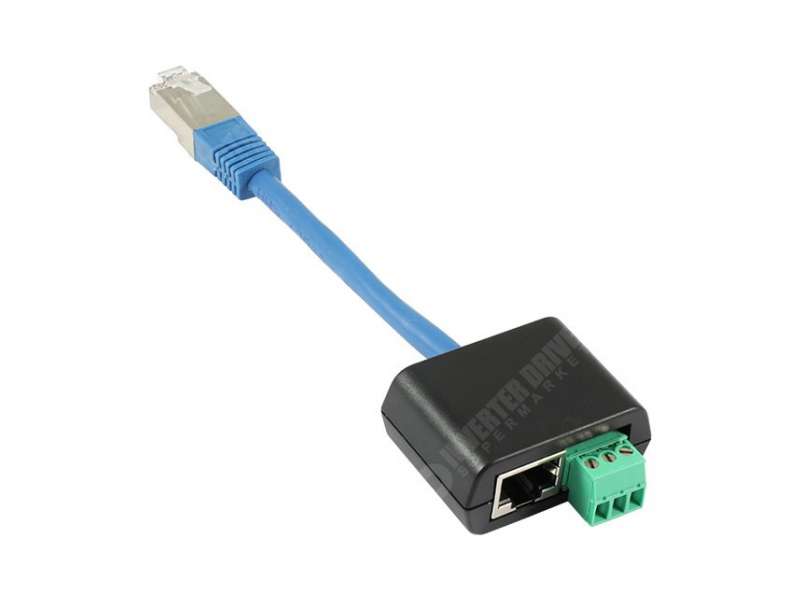

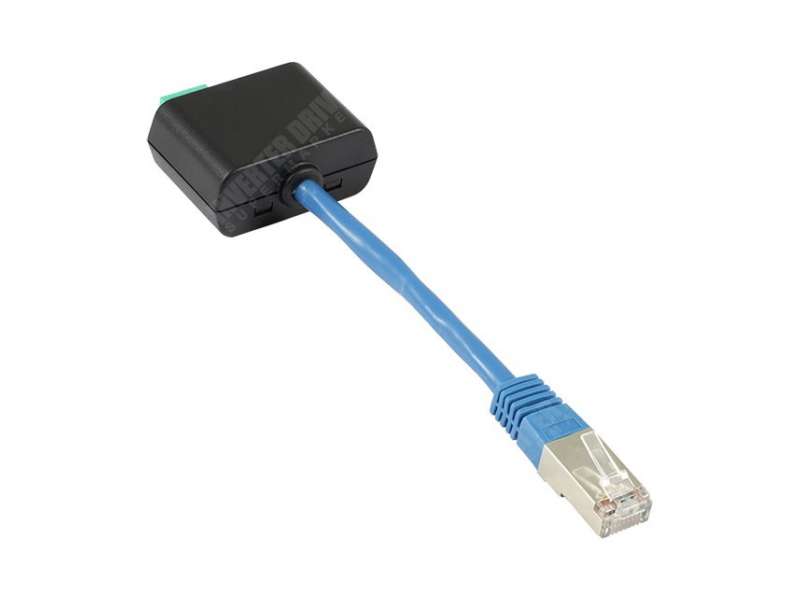

The Invertek OPT-2-BNTSP-IN is a BACnet data cable splitter, designed to enable terminal block type connectivity for BACnet communication networks.
Both the Optidrive ODV-2 (HVAC) and ODV-3 (ECO) models can connect to a BACnet network via their built-in RJ45 port. However, this BACnet data cable splitter can be utilized as an alternate method for terminating the network cable.
