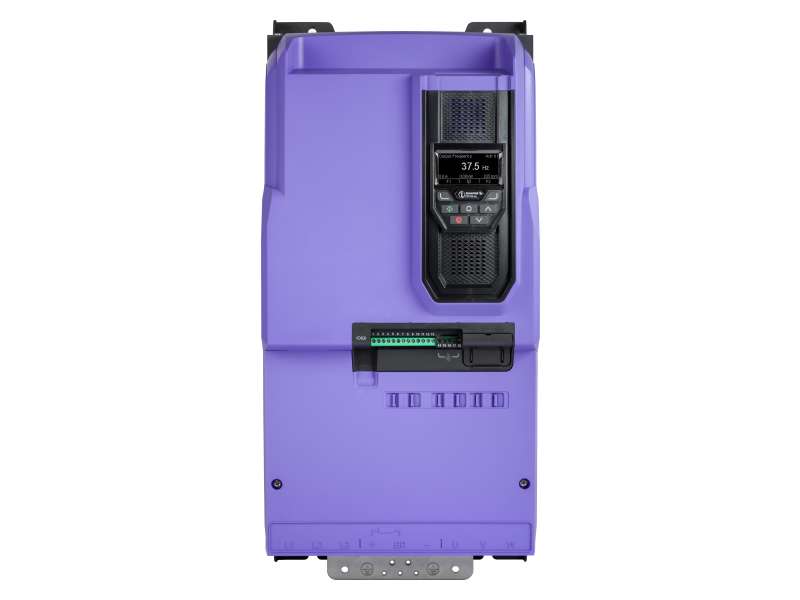

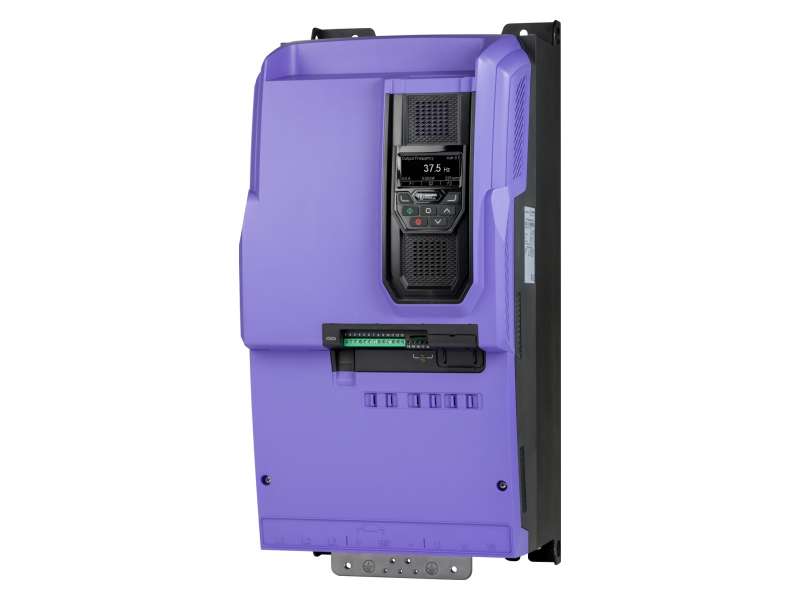

INVERTEK DRIVES Optidrive P2 , snage 110 kW , IP20 ; ODP-2-64110-3KF42-MN
Invertek Optidrive P2, ODP-2-64110-3KF42-MN , 380-480V three phase input, 3 phase output, 110kW, 202A, IP20 TFT display. DIN rail mountable High performance open...
VAT-exclusive price: 5.245,80 € |
VAT-inclusive price: 6.190,04 € |
Invertek Optidrive P2, ODP-2-64110-3KF42-MN , 380-480V three phase input, 3 phase output, 110kW, 202A, IP20

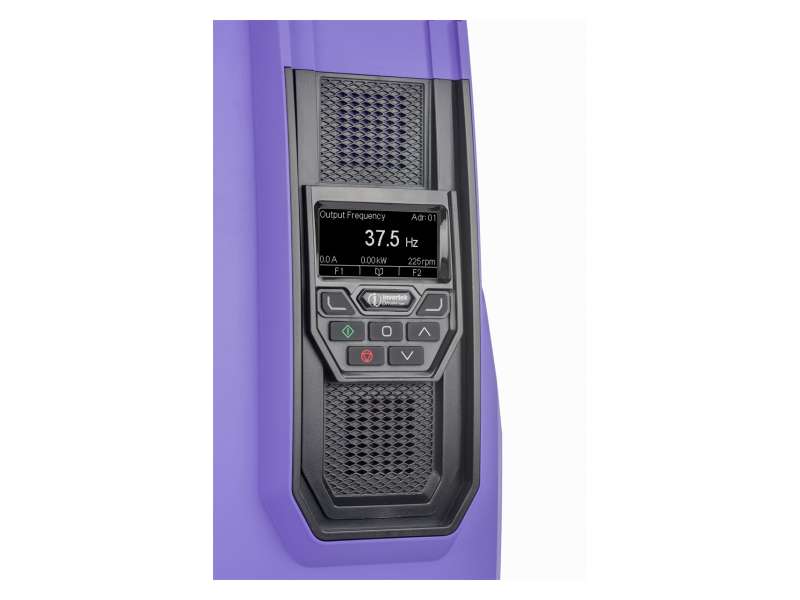

TFT display.
DIN rail mountable
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off-
TFT display.
DIN rail mountable
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off-
| Power (kW) | 110 |
| Power (HP) | 150 |
| Input Voltage | 380-480 V |
| Output Voltage | 0-input Voltage |
| Input Phases | 3 |
| Output Current | 202 A |
| Input Current | 189.8 A |
| Enclosure rating | IP20 |
| Width | 330mm |
| Height | 729mm |
| Depth | 320mm |
| Frame Size | 6B |
| Overload | 200% |
| Duty | Heavy |
| Dynamic Braking | Yes |
| Weight | 43kg |
| Control Type | Open or closed loop vector or V/f |
| Input Frequency | 48-62Hz |
| Output Frequency | 0-500Hz |
| Max Temperature | 50 ͦC |
| Digital Inputs | 5 |
| Digital Outputs | 2 |
| Analogue Inputs/Ps | 2 |
| Analogue Outputs/Ps | 2 |
| Output relay(s) | 2 |
| Serial Comms | Modbus, CANopen |
| Approvals | UL. cUL, C- Tick, Gost R, ROHS |
-
GB Optidrive P2 User Guide NEW
