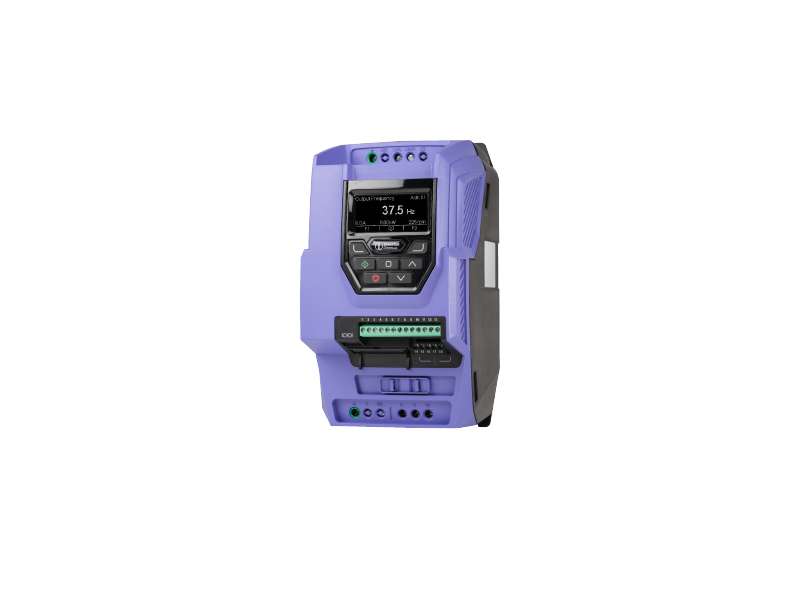

INVERTEK DRIVES Optidrive P2, 5.5 kW, IP20; ODP-2-34055-3KF42-MN
Optidrive P2 5.5 kW, 14 A, 380-480 V, 3PH, IP20 Variable Frequency Drive with EMC Filter and TFT Display; ODP-2-34055-3KF42-MN Invertek Optidrive P2, ODP-2-34055-3KF42-MN...
VAT-exclusive price: 650,00 € |
VAT-inclusive price: 767,00 € |
Optidrive P2 5.5 kW, 14 A, 380-480 V, 3PH, IP20 Variable Frequency Drive with EMC Filter and TFT Display; ODP-2-34055-3KF42-MN
PID control
PLC functions
Internal EMC filter and brake transistor.
Communication options : Profibus, Profinet,Ethernet, DeviceNet
Optional Encoder Interface
Invertek Optidrive P2,ODP-2-34055-3KF42-MN, 400V 3 phase input, 400V 3 phase output, 5.5kW, 14 A output current
IP20 inverter.
DIN rail mountable
High performance open loop vector or V/f control.PID control
PLC functions
Internal EMC filter and brake transistor.
Communication options : Profibus, Profinet,Ethernet, DeviceNet
Optional Encoder Interface
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 19 A |
| Supply Fuse or MCB (Type B) | 25 A |
Output Ratings
| Motor Output Rating | 5.5 kW (7.5 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 14 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP20 |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
i
| Size | 3 |
| Height | 261 mm (10.28 in) |
| Width | 131 mm (5.16 in) |
| Depth | 205 mm (8.07 in) |
| Weight | 3.5 kg (7.72 lbs) |
| Fixings | 4 x M4 |
Packaged Dimensions
i
| Height | 325 mm (12.8 in) |
| Width | 165 mm (6.5 in) |
| Depth | 260 mm (10.24 in) |
| Weight | 3.7 kg (8.16 lbs) |
-
Invertek Drives ODP-2-34055-3KF42-MN Datasheet
