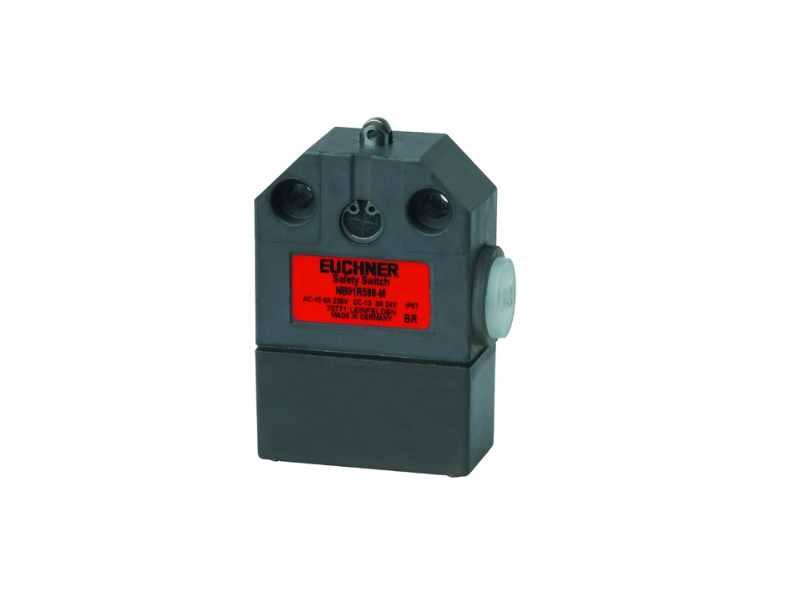

EUCHNER Single hole fixing limit switch NB01R588-M; 088583
Single hole fixing limit switch NB01, roller plunger With roller plunger, steel roller ø 5 mm Cable entry M12 x 1.5...
Price on request
Single hole fixing limit switch NB01, roller plunger
- With roller plunger, steel roller ø 5 mm
- Cable entry M12 x 1.5
Approvals
Electrical connection values
| Connection cross section | max. 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| DC-13 | 3 A 24 V |
| AC-15 | 4 A 230 V |
| Short circuit protection according to IEC 60269-1 | 10A gG |
| Switching current | |
| min. at DC 5V | 1 mA |
| thermal rated current Ith | 10 A |
Mechanical values and environment
| Approach speed | 0.01 ... 50 m/min |
| Connection type | |
| 1 x | M12 x 1.5 |
| Number of door position positively driven contacts | 1 |
| Actuating element | |
| Slide bearing metal | Roller plunger |
| Actuating force | 15 ... 20 N |
| Installation orientation | any |
| Mechanical life | 10 x 10⁶ |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Monitoring of the guard position | |
| B10D | 20 x 10⁶ |
Miscellaneous
| Additional feature | with low temperature grease |
