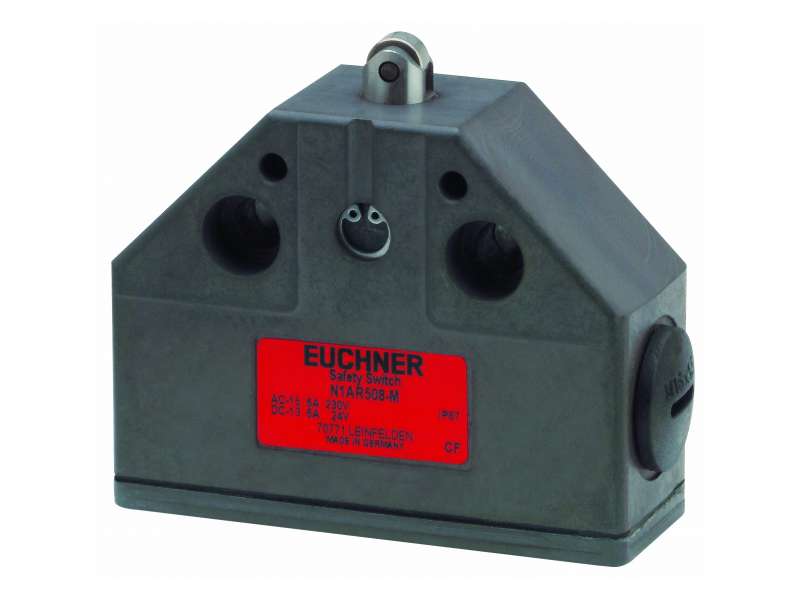

EUCHNER Single hole fixing limit switch N1AR/AB N1AR514-M ; 078487
Single hole fixing limit switch N1AR/AB N1AR514-M, roller plunger; 078487 Housing according to DIN 43693 Steel roller Ø 8 mm Cable entry M16x1.5...
Price on request
Single hole fixing limit switch N1AR/AB N1AR514-M, roller plunger; 078487
- Housing according to DIN 43693
- Steel roller Ø 8 mm
- Cable entry M16x1.5
Approvals
Electrical connection values
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Utilization category | |
| DC-13 | 6 A 24 V |
| AC-15 | 2.5 A 230 V |
| Short circuit protection according to IEC 60269-1 | 6A gG |
| Switching current | |
| min. at DC 24V | 5 mA |
| thermal rated current Ith | 10 A |
Mechanical values and environment
| Approach speed | 0.01 ... 80 m/min |
| Connection type | |
| 2 x | M16 x 1.5 |
| Number of switching elements | 1 |
| Number of NO contacts | 1 |
| Number of positively driven contacts | 1 |
| Design | Housing according to DIN 43693 |
| Actuating element | Roller plunger |
| Actuating force | min. 30 N |
| Installation orientation | any |
| Mechanical life | 1 x 10⁶ |
| Contact bounce time | ≤ 3ms |
| Roller diameter | 8 |
| Switching principle | Snap-action switching contact |
| Contact closing time | ≤ 5ms |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Monitoring of the guard position | |
| B10D | 2 x 10⁶ |
