EUCHNER Single hole fixing limit switch N1AD508AM-M; 090546
Single hole fixing limit switch N1AD, chisel plunger with exterior diaphragm Housing according to DIN 43693 Exterior diaphragm Cable entry M16x1.5...
Price on request

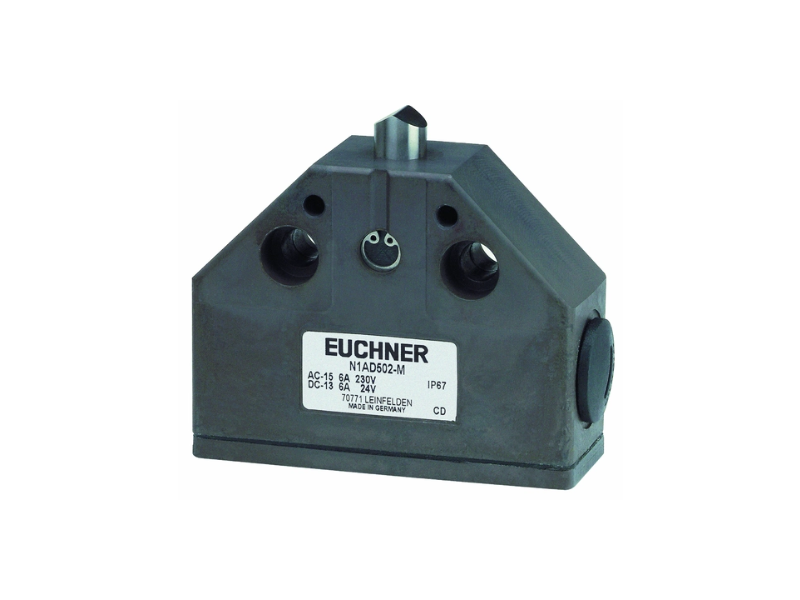

Single hole fixing limit switch N1AD, chisel plunger with exterior diaphragm
- Housing according to DIN 43693
- Exterior diaphragm
- Cable entry M16x1.5
Approvals
Electrical connection values
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Utilization category | |
| AC-15 | 6 A 230 V |
| DC-13 | 6 A 24 V |
| Short circuit protection according to IEC 60269-1 | 10A gG |
| Switching current | |
| min. at DC 24V | 10 mA |
| thermal rated current Ith | 10 A |
Mechanical values and environment
| Approach speed | 0.01 ... 20 m/min |
| Connection type | |
| 2 x | M16 x 1.5 |
| Number of switching elements | 1 |
| Number of positively driven contacts | 1 |
| Design | Housing according to DIN 43693 |
| Actuating element | Chisel plunger |
| Actuating force | min. 15 N |
| Installation orientation | any |
| Mechanical life | 30 x 10⁶ |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Monitoring of the guard position | |
| B10D | 20 x 10⁶ |
Miscellaneous
| Additional information | Exterior diaphragm = AM |
