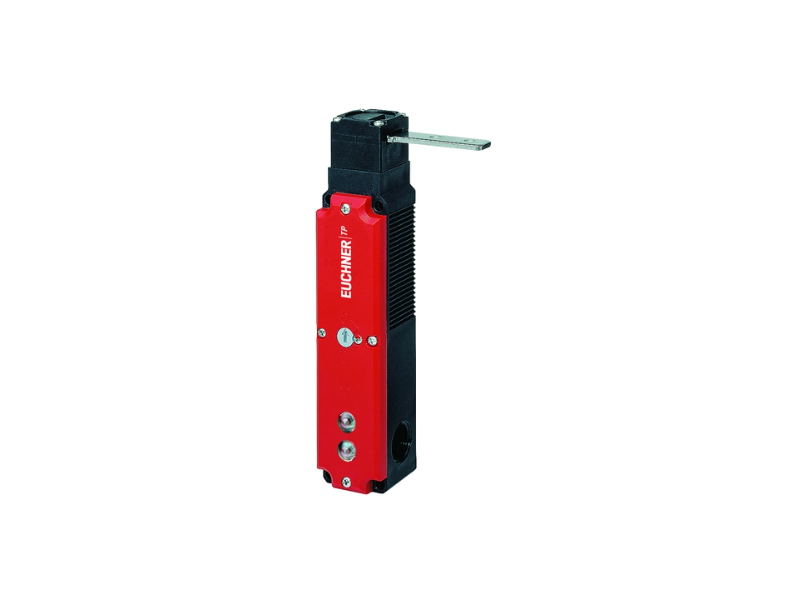

EUCHNER Safety switch TP3-537A024L024M; 093460
Safety switch TP with door monitoring contact Auxiliary release on the front With door monitoring contact Increased horizontal overtravel With LED function disp...
Price on request
Safety switch TP with door monitoring contact
- Auxiliary release on the front
- With door monitoring contact
- Increased horizontal overtravel
- With LED function display
Approvals
Electrical connection values
| Power consumption | 8 W |
| Connection cross section | 0.34 ... 1.5 mm² |
| Display module | |
| AC/DC | 24 V -15% ... +10% |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 4 A 230 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Connection type | |
| 3 x | M20 x 1.5 |
| Number of door position NC contacts | 1 |
| Number of guard lock monitoring positively driven contacts | 1 |
| Extraction force | 20 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 10 N |
| Installation orientation | any |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Housing | Reinforced thermoplastic |
| Contact | Silver alloy, gold flashed |
| Locking force Fmax | 1300 N |
| Locking force FZh | 1000 N |
| Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Monitoring of guard locking and the guard position | |
| B10D | 3 x 10⁶ |
In combination with actuator ACTUATOR-P-GT
| Horizontal overtravel | 2 mm |
| Vertical overtravel | 1.5 mm |
In combination with actuator ACTUATOR-P-GNT
| Horizontal overtravel | 7 mm |
